ToupTek G3CMOS08300KPA Colour Camera
Uncooled colour camera with the Sony IMX585 1/1.2″ sensor. 8.3 MP, 2.9 µm pixels.
Original price was: £415.00.£375.00Current price is: £375.00.
Free tracked UK delivery
In stock · dispatched next working day
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- Manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX585 sensor, other versionsSee all 8 IMX585 cameras
- Player One Uranus-C Colour CameraPlayer One · colour · uncooled
- Player One Uranus-C Pro Colour Cooled CameraPlayer One · colour · cooled
- Player One Uranus-M Mono CameraPlayer One · mono · uncooled
- Player One Uranus-M Pro Mono Cooled CameraPlayer One · mono · cooled
Overview

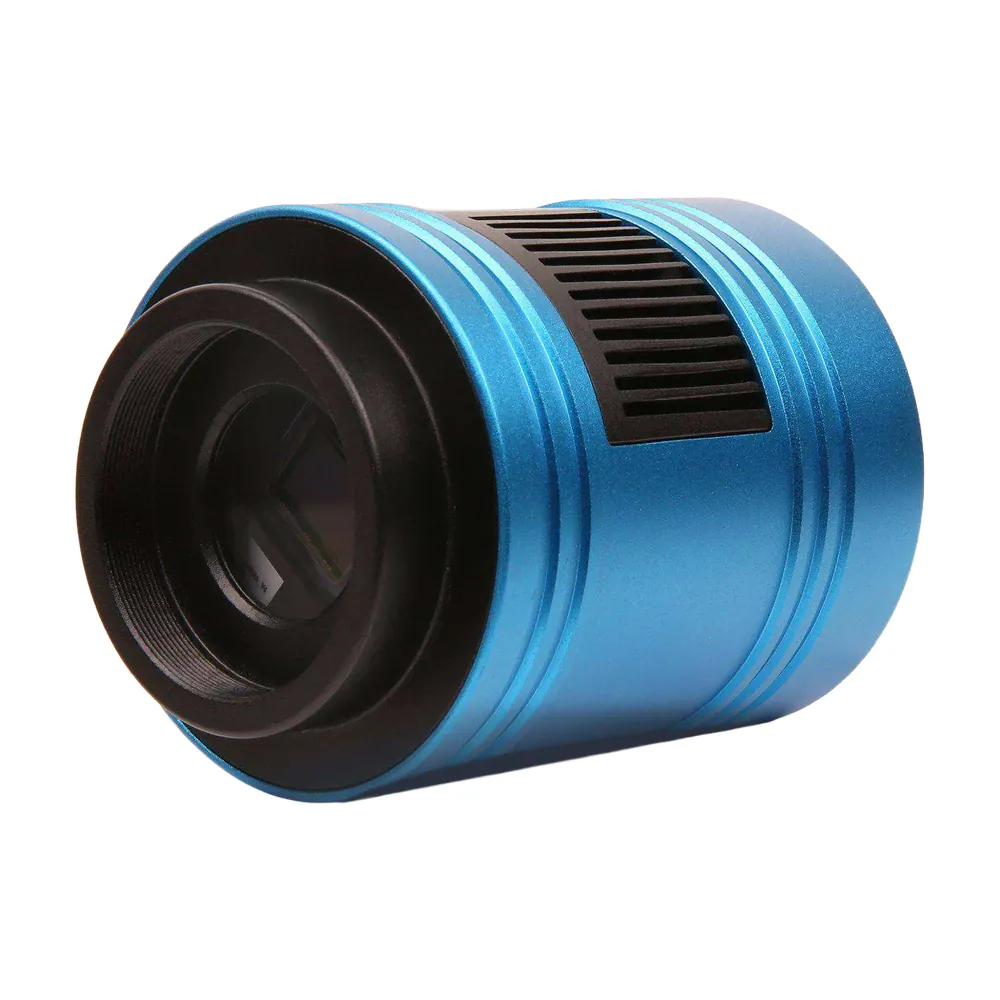

The ToupTek G3CMOS08300KPA is a colour camera with Sony’s IMX585, a 1/1.2″ STARVIS 2 sensor of 8.3 megapixels with 2.9 µm pixels, in a fan-cooled body.
The IMX585 is one of the most versatile small sensors: fast enough for the planets, large enough for good sections of the Moon and Sun, and sensitive in the near infrared. For the planets it samples well at around f/15. It also works for live stacking of small deep-sky targets.
If you want to take longer deep-sky exposures, the ATR585C uses the same sensor with TEC cooling.
Choose the window when you order. The IR-cut version is for normal colour imaging. Clear AR-coated glass lets infrared through, for use with an IR-pass filter on the planets and Moon, or your own UV/IR-cut filter.
Cooling

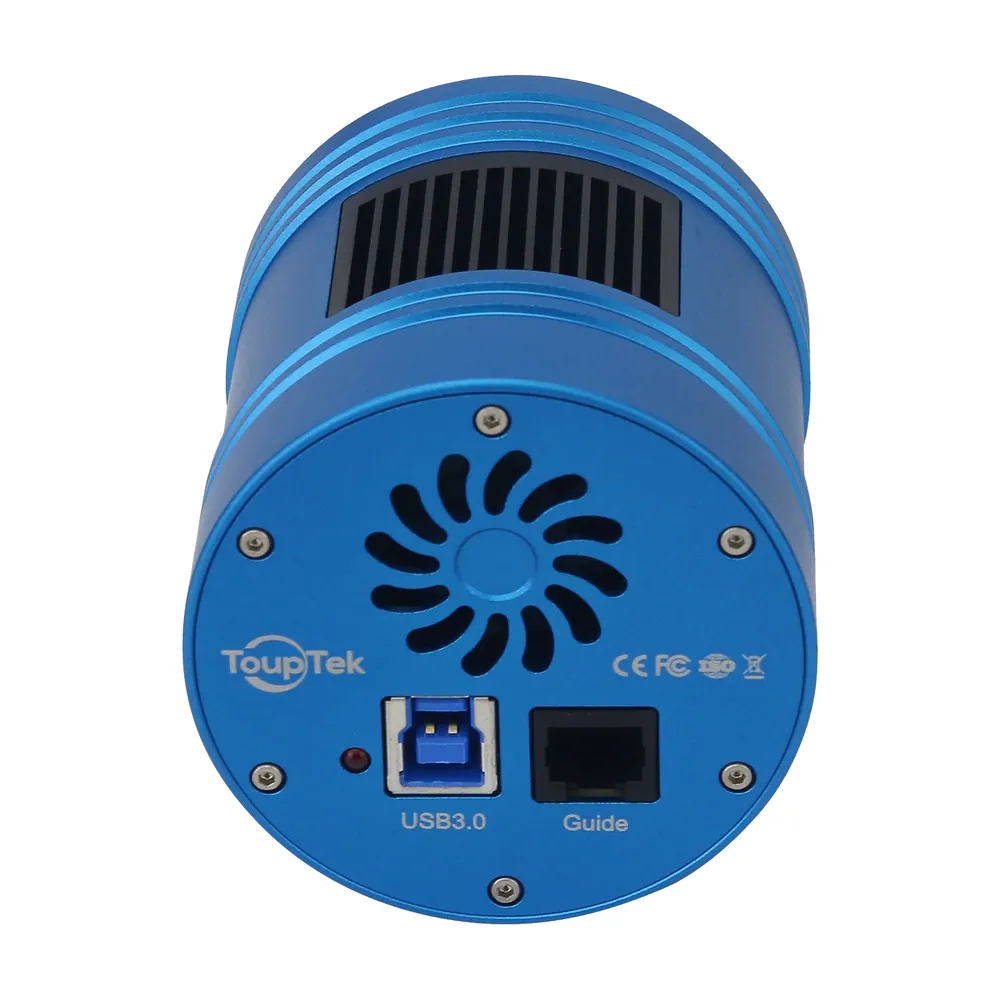

A fan in the body carries heat away from the sensor. It doesn’t cool below the air temperature, so it isn’t a replacement for a TEC-cooled camera on long deep-sky exposures.
Specifications
| Sensor | Sony IMX585, colour |
|---|---|
| Sensor format | 1/1.2″ |
| Sensor size | 11.2 × 6.3 mm |
| Diagonal | 12.85 mm |
| Image size | 3840 × 2160 px |
| Sensor megapixels | 8.3 MP |
| Pixel size | 2.9 µm |
| Shutter | Rolling |
| Cooling | Fan only (no TEC) |
| Connection | USB 3.0 |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 2.9 µm pixels and 11.2 × 6.3 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 2.4″ per pixel | 2.6° × 1.4° |
| 400 mm | 1.5″ per pixel | 1.6° × 54′ |
| 600 mm | 1.00″ per pixel | 1.1° × 36′ |
| 1,000 mm | 0.60″ per pixel | 39′ × 22′ |
| 2,000 mm | 0.30″ per pixel | 19′ × 11′ |
Specifications from the manufacturer. Check with us if a figure matters for your setup.
