Player One Uranus-C Pro Colour Cooled Camera
Cooled colour camera with the Sony IMX585 1/1.2″ sensor. 8.3 MP, 2.9 µm pixels, 12-bit.
£429.00
Free tracked UK delivery
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX585 sensor, other versionsSee all 8 IMX585 cameras
- Player One Uranus-C Colour CameraPlayer One · colour · uncooled
- Player One Uranus-M Mono CameraPlayer One · mono · uncooled
- Player One Uranus-M Pro Mono Cooled CameraPlayer One · mono · cooled
- Player One Xena 585M Mono CameraPlayer One · mono · uncooled
Overview

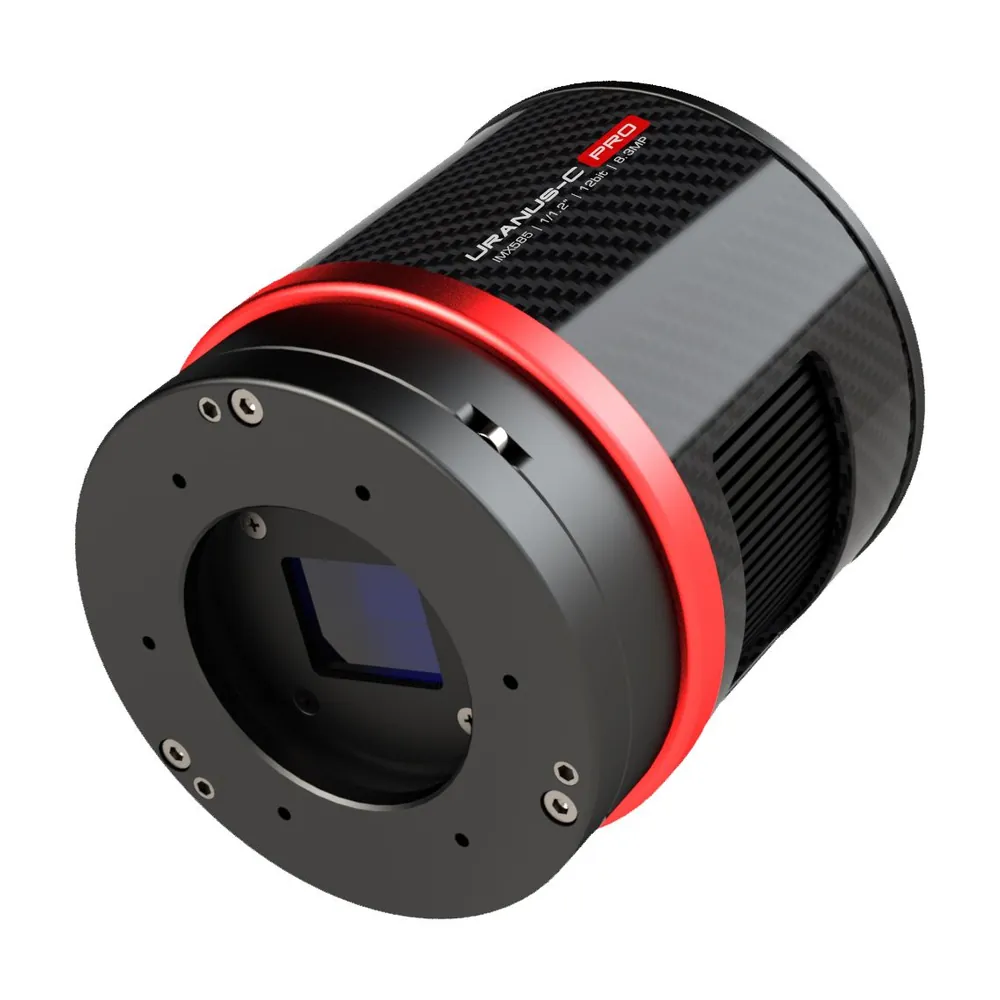

The Player One Uranus-C Pro is a cooled colour astronomy camera built around Sony’s IMX585 sensor. It is a small, light camera for galaxies, planetary nebulae and other small deep-sky targets, and it also works for the planets.
Cooling holds the sensor 35–40 °C below the air temperature at a set point you choose, so one set of dark frames can be reused across nights. Dark frames show no amp glow.
The 2.9 µm pixels suit shorter focal lengths for deep-sky work. On an 800 mm telescope the camera samples at 0.75″ per pixel and covers about 48 × 27 arcminutes. Read noise drops to 0.7 e⁻ at high gain, which helps with short sub-exposures and dual-band filters.

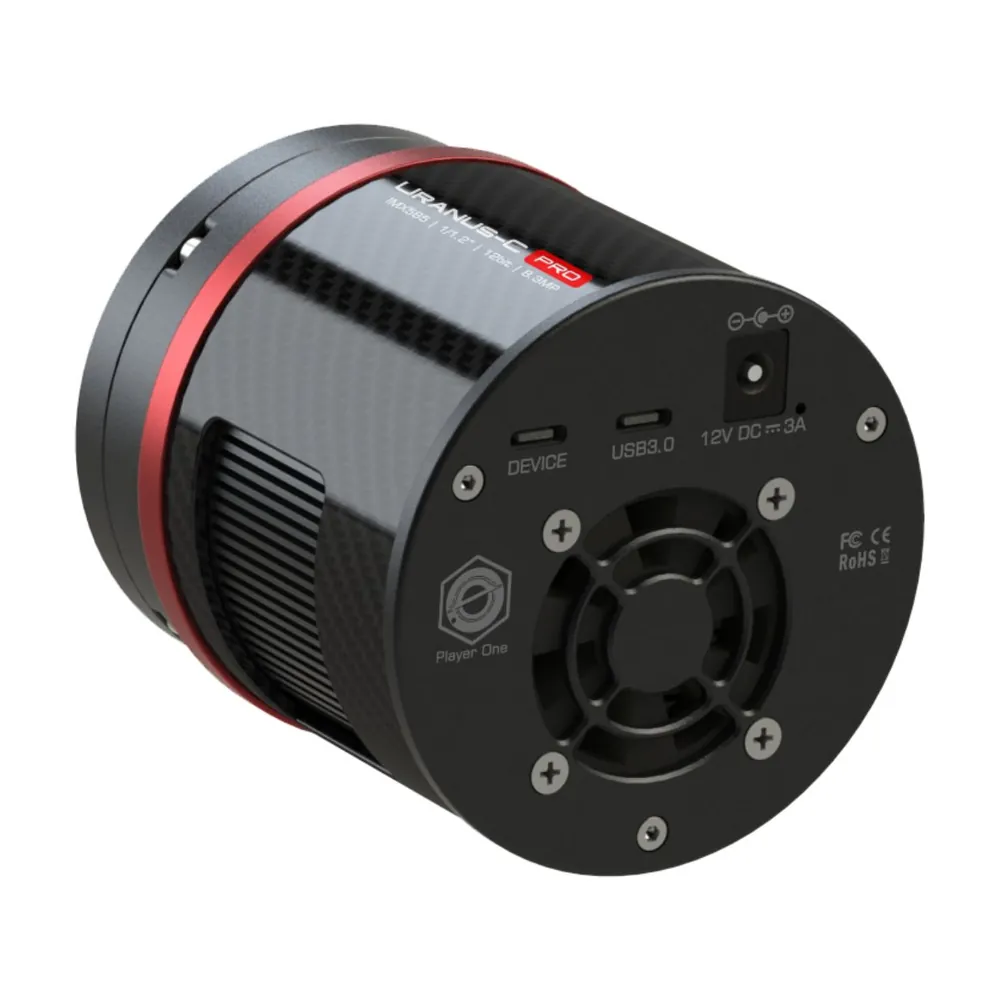

The carbon fibre body weighs 420 g. A heater keeps dew off the window, at a power you set. Tilt is set with the front three-point plate, and a rear four-point plate is available. A 512 MB buffer stops dropped frames on slower laptops.
It runs over USB without the 12 V supply, as an uncooled camera. For cooling you need a 12 V supply, which is not included: Player One recommends one rated at 5 A or more.
Specifications
| Sensor | Sony IMX585, colour |
|---|---|
| Sensor format | 1/1.2″ |
| Sensor size | 11.2 × 6.3 mm |
| Diagonal | 12.85 mm |
| Image size | 3856 × 2180 px |
| Sensor megapixels | 8.3 MP |
| Pixel size | 2.9 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 47 ke⁻ |
| Read noise, low to high gain | 7.2–0.7 e⁻ |
| Peak QE | 91% |
| Cooling | Two-stage TEC, 35–40 °C below ambient |
| Max frame rate | 47 fps (10-bit) |
| Image buffer | 512 MB |
| Back focus | 17.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, 1.25″ |
| Weight | 420 g |
| Body diameter | 78 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 2.9 µm pixels and 11.2 × 6.3 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 2.4″ per pixel | 2.6° × 1.4° |
| 400 mm | 1.5″ per pixel | 1.6° × 54′ |
| 600 mm | 1.00″ per pixel | 1.1° × 36′ |
| 1,000 mm | 0.60″ per pixel | 39′ × 22′ |
| 2,000 mm | 0.30″ per pixel | 19′ × 11′ |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with metal cover
- M48 to M42 extender, 17.5 mm
- M42 extender, 20 mm
- M48 to M42 adapter
- T-mount and 1.25″ cover
- Air blower
- USB 3.2 cable, Type-C to Type-A, 2 m
- USB 2.0 cables, Type-C to Type-C and Type-C to Type-B, 0.5 m
- Screwdriver, M2 hex key and M2.5 screws
- Rear four-point tilt adjuster
- Camera bag and cable tie
Not included
- Power supply: 12 V, 5 A or more recommended
