Player One Xena 585M Mono Camera
Uncooled mono camera with the Sony IMX585 1/1.2″ sensor. 8.3 MP, 2.9 µm pixels, 12-bit.
£364.00
Free tracked UK delivery
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX585 sensor, other versionsSee all 8 IMX585 cameras
- Player One Uranus-C Colour CameraPlayer One · colour · uncooled
- Player One Uranus-C Pro Colour Cooled CameraPlayer One · colour · cooled
- Player One Uranus-M Mono CameraPlayer One · mono · uncooled
- Player One Uranus-M Pro Mono Cooled CameraPlayer One · mono · cooled
Overview

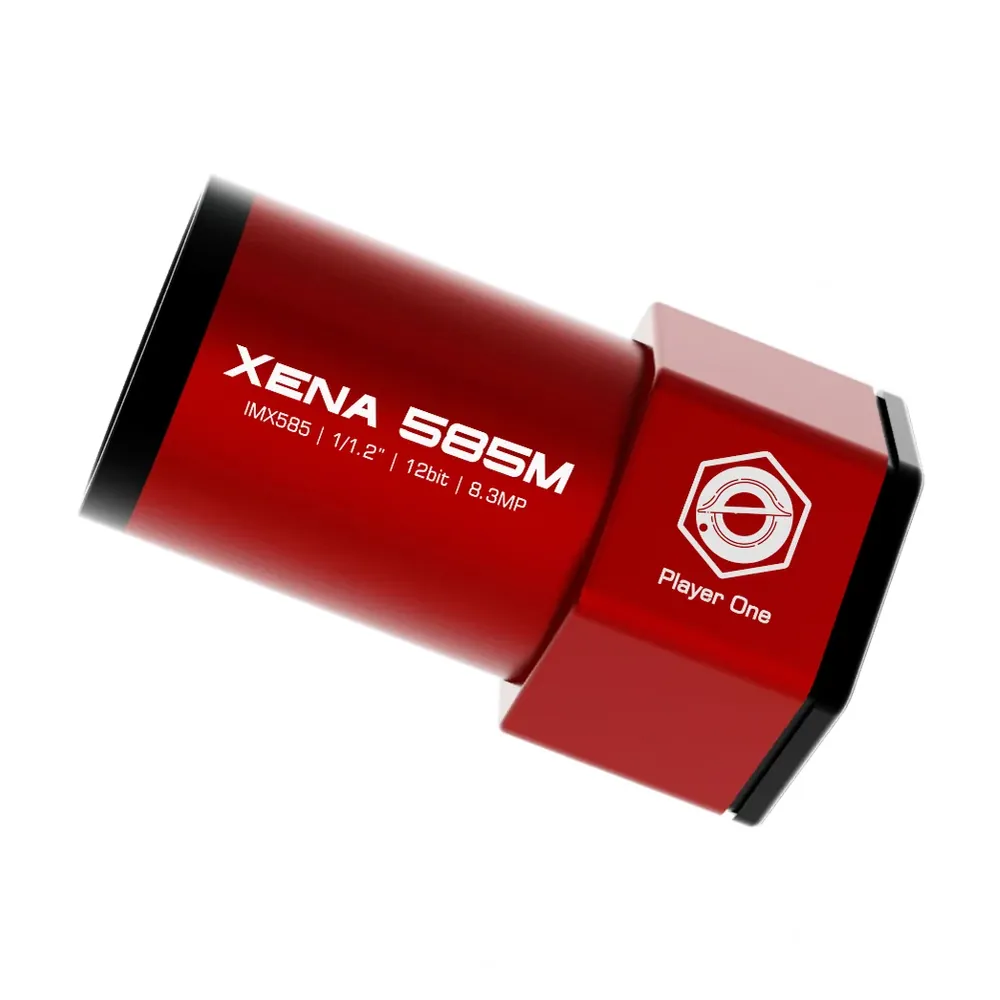

The Player One Xena 585M is an uncooled mono astronomy camera built around Sony’s IMX585 sensor, in a 65 g, 1.25″ body made for guiding.
Its sensor is large for a guide camera, with a 12.85 mm diagonal. That is about four times the area of the IMX462 in the Ceres 462M. On a 200 mm guide scope it covers about 3.2° × 1.8° at 3″ per pixel, so there are more stars to choose from. With an off-axis guider, the bigger chip makes better use of the prism.
Read noise falls to 0.7 e⁻ at high gain, and the sensor is sensitive in the near infrared, which helps short guide exposures.
The body has an M28.5 thread as well as the 1.25″ barrel, and back focus is 7.5 mm. It also runs at 47 frames per second at full resolution, so it can be used for planetary imaging too.
Specifications
| Sensor | Sony IMX585, mono |
|---|---|
| Sensor format | 1/1.2″ |
| Sensor size | 11.2 × 6.3 mm |
| Diagonal | 12.85 mm |
| Image size | 3856 × 2180 px |
| Sensor megapixels | 8.3 MP |
| Pixel size | 2.9 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 47 ke⁻ |
| Read noise, low to high gain | 7.2–0.7 e⁻ |
| Peak QE | 91% |
| Cooling | None |
| Max frame rate | 47 fps (10-bit) |
| Back focus | 7.5 mm |
| Connection | USB 3.0 |
| Adapters | M28.5×0.6, 1.25″ |
| Weight | 65 g |
| Body diameter | 40 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 2.9 µm pixels and 11.2 × 6.3 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 2.4″ per pixel | 2.6° × 1.4° |
| 400 mm | 1.5″ per pixel | 1.6° × 54′ |
| 600 mm | 1.00″ per pixel | 1.1° × 36′ |
| 1,000 mm | 0.60″ per pixel | 39′ × 22′ |
| 2,000 mm | 0.30″ per pixel | 19′ × 11′ |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera
- USB 3.0 cable, 2 m
- ST4 guide cable, 2 m
- 1.25″ extender
- 1.25″ dust cover
- Air blower
