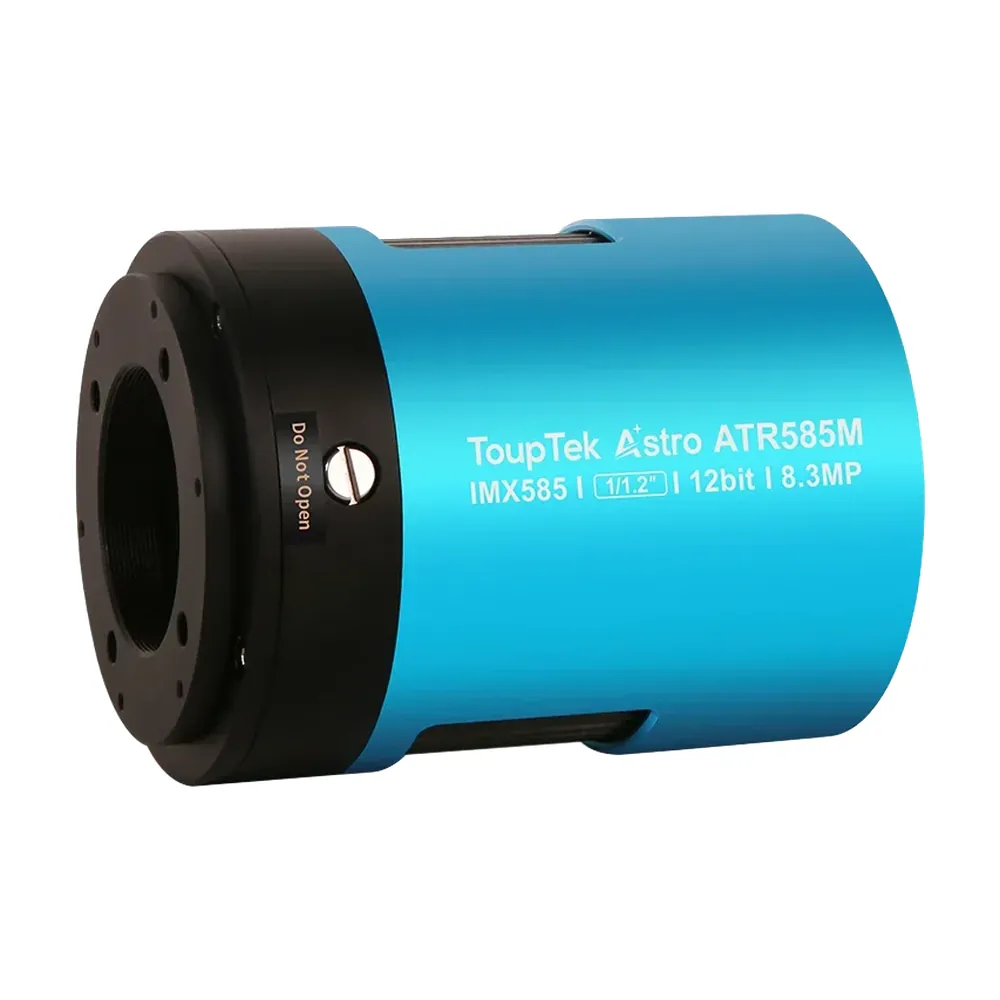

ToupTek ATR585M Mono Cooled Camera
Cooled mono camera with the Sony IMX585 1/1.2″ sensor. 8.3 MP, 2.9 µm pixels, 12-bit.
£555.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX585 sensor, other versionsSee all 8
- Player One Uranus-C Colour CameraPlayer One · colour · uncooled
- Player One Uranus-C Pro Colour Cooled CameraPlayer One · colour · cooled
- Player One Uranus-M Mono CameraPlayer One · mono · uncooled
- Player One Uranus-M Pro Mono Cooled CameraPlayer One · mono · cooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- Manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview
The ToupTek ATR585M is a cooled mono astronomy camera with Sony’s IMX585, a 1/1.2″ STARVIS 2 sensor of 8.3 megapixels with 2.9 µm pixels. Peak quantum efficiency is above 91%, with strong near-infrared response.
Mono and near-infrared together make it a good planetary and lunar camera through an IR-pass filter, where steadier seeing at longer wavelengths gives sharper frames. Cooling also makes it useful for narrowband on small deep-sky targets: at 400 mm it samples at about 1.5″ per pixel. Read noise falls to 0.5 e⁻ at high gain.
Cooling, dew and power
Two-stage cooling takes the sensor up to 45 °C below the air temperature. It holds the set point to within 0.1 °C, so dark frames can be reused from night to night. A heater on the front window has four power settings and can be switched off in software. Cooling needs 12 V; the 12 V 3 A power supply is in the box.
Back focus and connections
Back focus is 17.5 mm from the M42 thread. Adapter rings and extension tubes are included to build out to the spacing your flattener or reducer needs, usually 55 mm. A 512 MB buffer holds each frame while it transfers, so a slow USB link doesn’t drop frames.
Specifications
| Sensor | Sony IMX585, mono |
|---|---|
| Sensor format | 1/1.2″ |
| Sensor size | 11.2 × 6.3 mm |
| Diagonal | 12.85 mm |
| Resolution | 3856 × 2180 px |
| Megapixels | 8.3 MP |
| Pixel size | 2.9 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 38.9 ke⁻ |
| Read noise | 3.04–0.50 e⁻ |
| Peak QE | >91% |
| Cooling | Two-stage TEC, 35–45 °C below ambient |
| Max frame rate | 24 fps (12-bit) |
| Image buffer | 512 MB |
| Back focus | 17.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, M48×0.75 |
| Weight | 577 g |
| Body diameter | 80 mm |
Specifications from the manufacturer. Check with us if a figure matters for your setup.
In the box
- ATR camera
- Power supply, 12 V 3 A, and power cable
- USB 3.0 cable, 1.5 m
- Adapter rings and extension tubes
- Front cap
