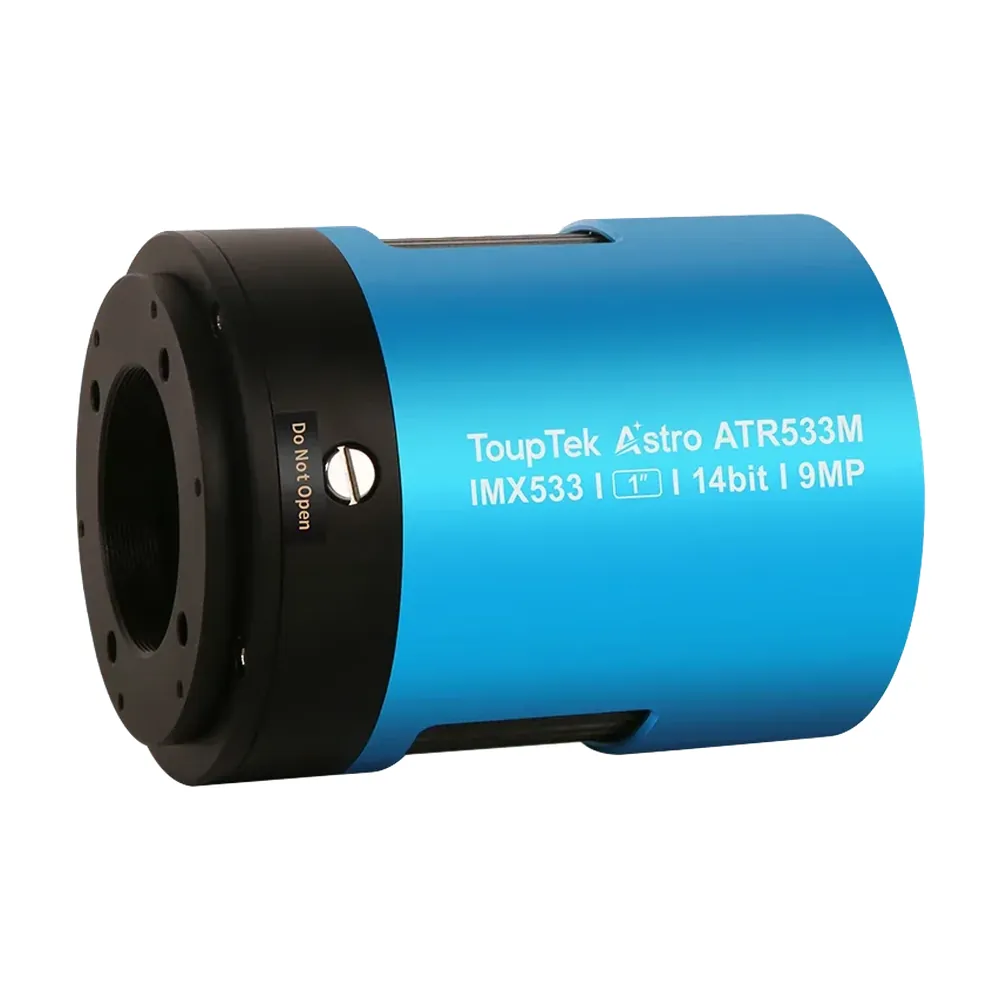

ToupTek ATR533M Mono Cooled Camera
Cooled mono camera with the Sony IMX533 1″ square sensor. 9 MP, 3.76 µm pixels, 14-bit.
£1,090.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX533 sensor, other versionsSee all 6
- Player One Ares-C Pro Colour Cooled CameraPlayer One · colour · cooled
- Player One Ares-M Pro Mono Cooled CameraPlayer One · mono · cooled
- Player One Saturn-C SQR Colour CameraPlayer One · colour · uncooled
- Player One Saturn-M SQR Mono CameraPlayer One · mono · uncooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- Manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview
The ToupTek ATR533M is a cooled mono astronomy camera with Sony’s IMX533, a 1″ square sensor of 9 megapixels with 3.76 µm pixels. Peak quantum efficiency is above 90%, and there’s no amp glow.
It’s a sensible first mono camera for narrowband and LRGB. 1.25″ filters cover the 16 mm diagonal, so the filter wheel and filters cost less than for larger sensors. At 800 mm it samples at about 0.97″ per pixel; at 400 mm, about 1.9″. In low noise mode read noise drops to 0.27 e⁻, and a high full well mode doubles capacity to about 105 ke⁻.
Cooling, dew and power
Two-stage cooling takes the sensor up to 42 °C below the air temperature. It holds the set point to within 0.1 °C, so dark frames can be reused from night to night. A heater on the front window has four power settings and can be switched off in software. Cooling needs 12 V; the 12 V 3 A power supply is in the box.
Back focus and connections
Back focus is 17.5 mm from the M42 thread. Adapter rings and extension tubes are included to build out to the spacing your flattener or reducer needs, usually 55 mm. A USB 2.0 hub on the back takes a filter wheel or guide camera, so fewer cables run down the mount. A 512 MB buffer holds each frame while it transfers, so a slow USB link doesn’t drop frames.
Specifications
| Sensor | Sony IMX533, mono |
|---|---|
| Sensor format | 1″ square |
| Sensor size | 11.31 × 11.31 mm |
| Diagonal | 16 mm |
| Resolution | 3008 × 3008 px |
| Megapixels | 9 MP |
| Pixel size | 3.76 µm |
| Shutter | Rolling |
| ADC | 14 bit |
| Full well | 52 ke⁻ |
| Read noise | 1.84–0.27 e⁻ |
| Peak QE | >90% |
| Cooling | Two-stage TEC, 35–45 °C below ambient |
| Max frame rate | 20 fps (14-bit) |
| Image buffer | 512 MB |
| Back focus | 17.5 mm |
| Connection | USB 3.0, USB 2.0 hub |
| Adapters | M42×0.75, M48×0.75 |
| Weight | 577 g |
| Body diameter | 80 mm |
Specifications from the manufacturer. Check with us if a figure matters for your setup.
In the box
- ATR camera
- Power supply, 12 V 3 A, and power cable
- USB 3.0 cable, 1.5 m
- Adapter rings and extension tubes
- Front cap
