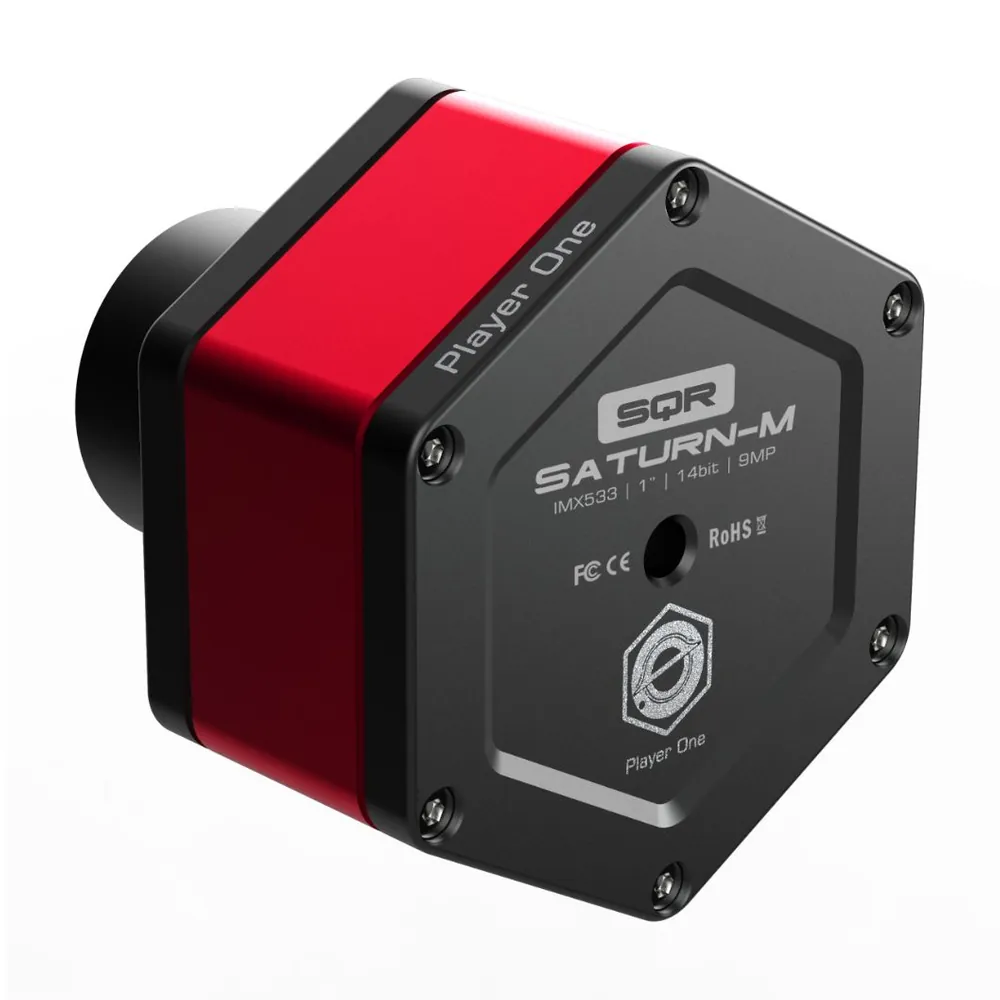

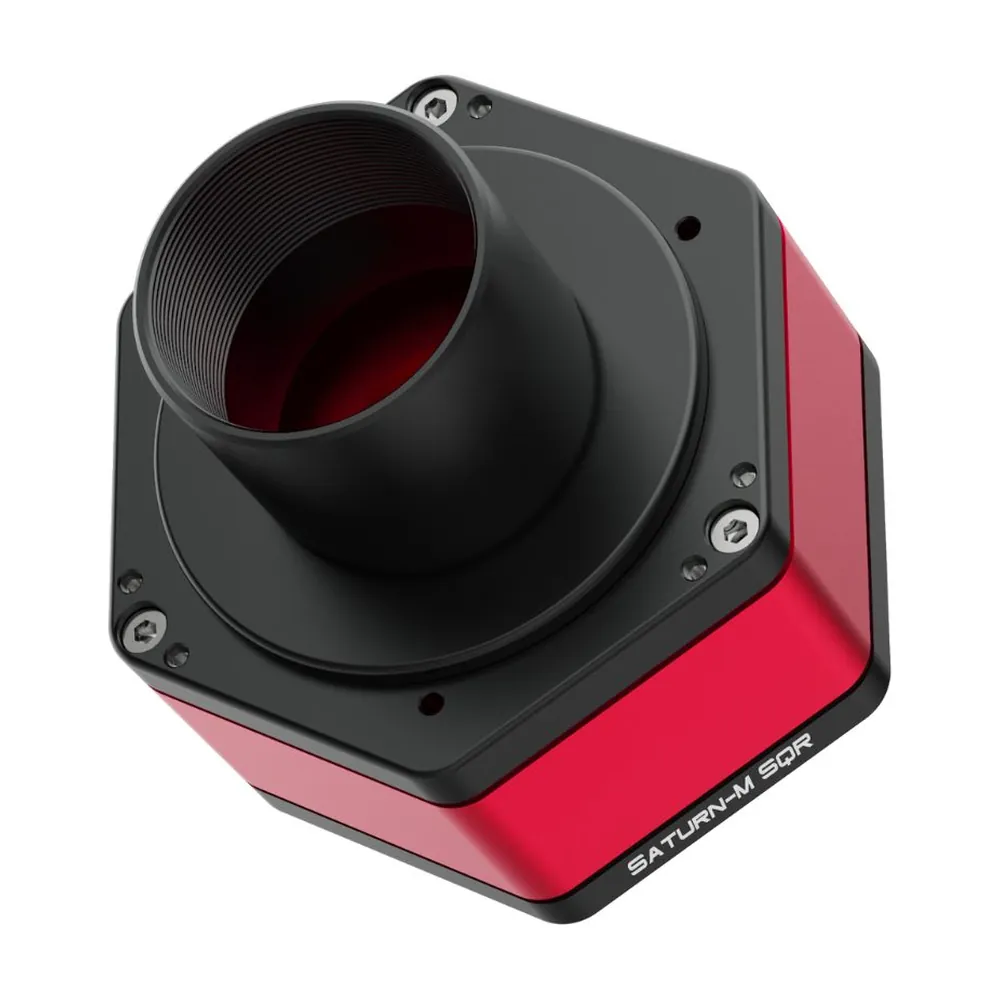

Player One Saturn-M SQR Mono Camera
Uncooled mono camera with the Sony IMX533 1″ square sensor. 9 MP, 3.76 µm pixels, 14-bit.
£600.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX533 sensor, other versionsSee all 6
- Player One Ares-C Pro Colour Cooled CameraPlayer One · colour · cooled
- Player One Ares-M Pro Mono Cooled CameraPlayer One · mono · cooled
- Player One Saturn-C SQR Colour CameraPlayer One · colour · uncooled
- ToupTek ATR533C Colour Cooled CameraToupTek · colour · cooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview
The Player One Saturn-M SQR is an uncooled mono astronomy camera built around Sony’s square 1″ IMX533 sensor. It is the same sensor as the cooled Ares-M Pro, in a light 160 g body.
It suits solar and lunar mosaics, lucky imaging of small deep-sky targets, and live stacking. On a 600 mm refractor it samples at 1.29″ per pixel over a field of about 65 × 65 arcminutes.
Peak QE is about 91%, and each 3.76 µm pixel holds up to 73,000 electrons. Dark frames show no amp glow. A low-noise mode gives more dynamic range for deep-sky work, and a normal mode runs at up to 43 frames per second at full resolution.
The body has a passive heatsink. Our Player One Active Cooling System fits if you want to keep it close to air temperature: Player One measures about 7 °C above ambient with it fitted.
The sensor tilt plate corrects tilt and helps with Newton’s rings in solar work. A 256 MB buffer stops dropped frames on slower laptops.
Specifications
| Sensor | Sony IMX533, mono |
|---|---|
| Sensor format | 1″ square |
| Sensor size | 11.31 × 11.31 mm |
| Diagonal | 16 mm |
| Resolution | 3008 × 3008 px |
| Megapixels | 9 MP |
| Pixel size | 3.76 µm |
| Shutter | Rolling |
| ADC | 14 bit |
| Full well | 73 ke⁻ |
| Read noise | 4.46–1.0 e⁻ |
| Peak QE | 91% |
| Cooling | None: passive heatsink (optional active cooling kit) |
| Max frame rate | 43 fps (10-bit) |
| Image buffer | 256 MB |
| Back focus | 12.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, 1.25″ |
| Weight | 160 g |
| Body diameter | 66 mm |
Specifications from Player One. Check with us if a figure matters for your setup.
