Player One Saturn-C SQR Colour Camera
Uncooled colour camera with the Sony IMX533 1″ square sensor. 9 MP, 3.76 µm pixels, 14-bit.
£455.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX533 sensor, other versionsSee all 6
- Player One Ares-C Pro Colour Cooled CameraPlayer One · colour · cooled
- Player One Ares-M Pro Mono Cooled CameraPlayer One · mono · cooled
- Player One Saturn-M SQR Mono CameraPlayer One · mono · uncooled
- ToupTek ATR533C Colour Cooled CameraToupTek · colour · cooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview

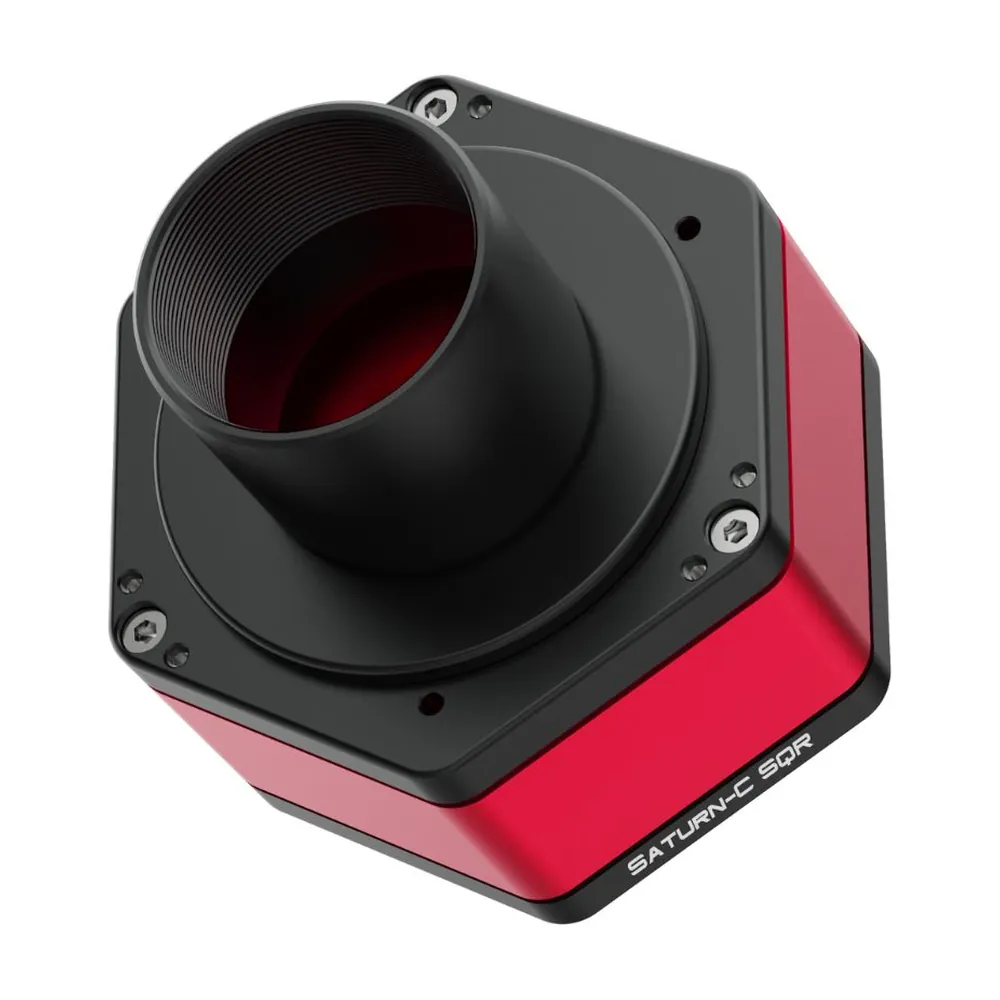

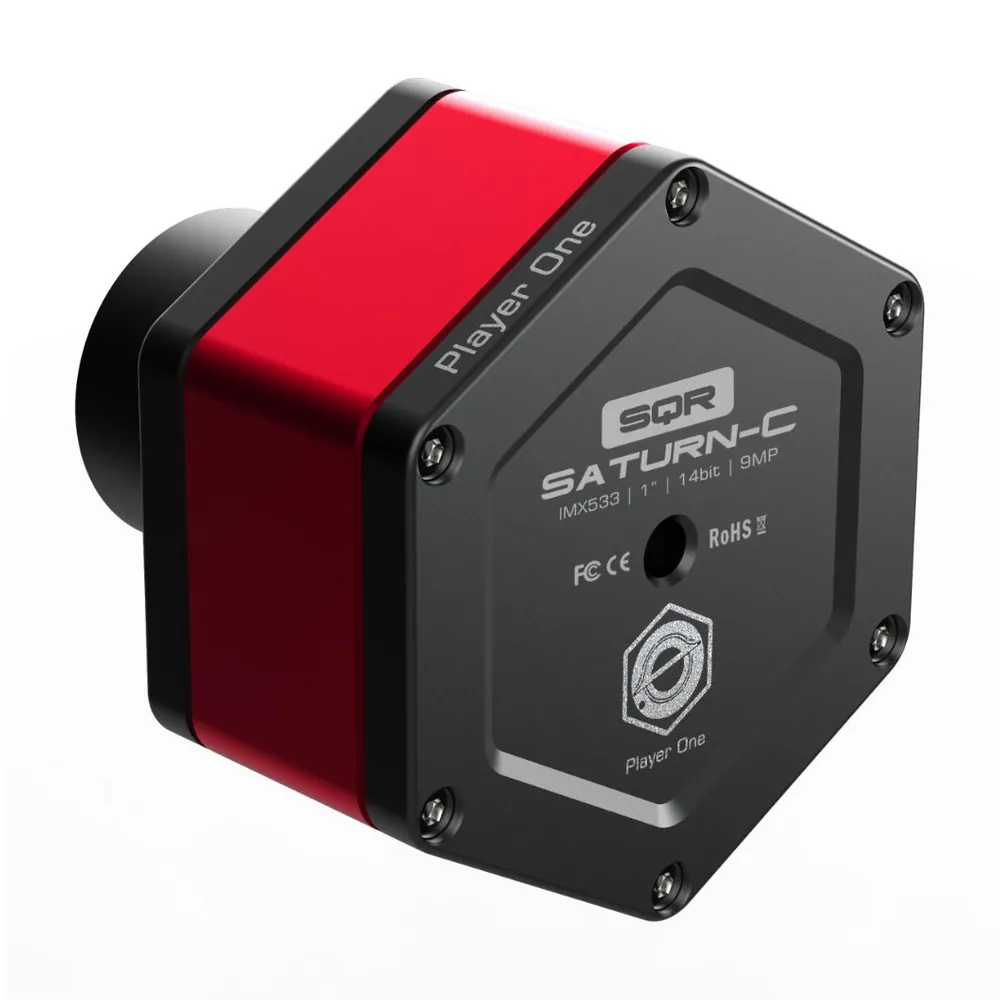

The Player One Saturn-C SQR is an uncooled colour astronomy camera built around Sony’s square 1″ IMX533 sensor. It is the same sensor as the cooled Ares-C Pro, in a light 160 g body.
It suits live stacking of galaxies and nebulae, lucky imaging of small deep-sky targets, and mosaics of the Moon and the Sun. On a 600 mm refractor it samples at 1.29″ per pixel over a field of about 65 × 65 arcminutes.
Each 3.76 µm pixel holds up to 73,000 electrons, and dark frames show no amp glow. A low-noise mode gives more dynamic range for deep-sky work, and a normal mode gives higher frame rates, up to 43 frames per second at full resolution.
The body has a passive heatsink. Our Player One Active Cooling System fits if you want to keep it close to air temperature: Player One measures about 7 °C above ambient with it fitted.
The window is AR-coated, not IR-cut, so add a UV/IR-cut or dual-band filter for colour imaging. The sensor tilt plate corrects tilt, and a 256 MB buffer stops dropped frames on slower laptops.
Specifications
| Sensor | Sony IMX533, colour |
|---|---|
| Sensor format | 1″ square |
| Sensor size | 11.31 × 11.31 mm |
| Diagonal | 16 mm |
| Resolution | 3008 × 3008 px |
| Megapixels | 9 MP |
| Pixel size | 3.76 µm |
| Shutter | Rolling |
| ADC | 14 bit |
| Full well | 73 ke⁻ |
| Read noise | 4.46–1.0 e⁻ |
| Peak QE | 80% |
| Cooling | None: passive heatsink (optional active cooling kit) |
| Max frame rate | 43 fps (10-bit) |
| Image buffer | 256 MB |
| Back focus | 12.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, 1.25″ |
| Weight | 160 g |
| Body diameter | 66 mm |
Specifications from Player One. Check with us if a figure matters for your setup.
