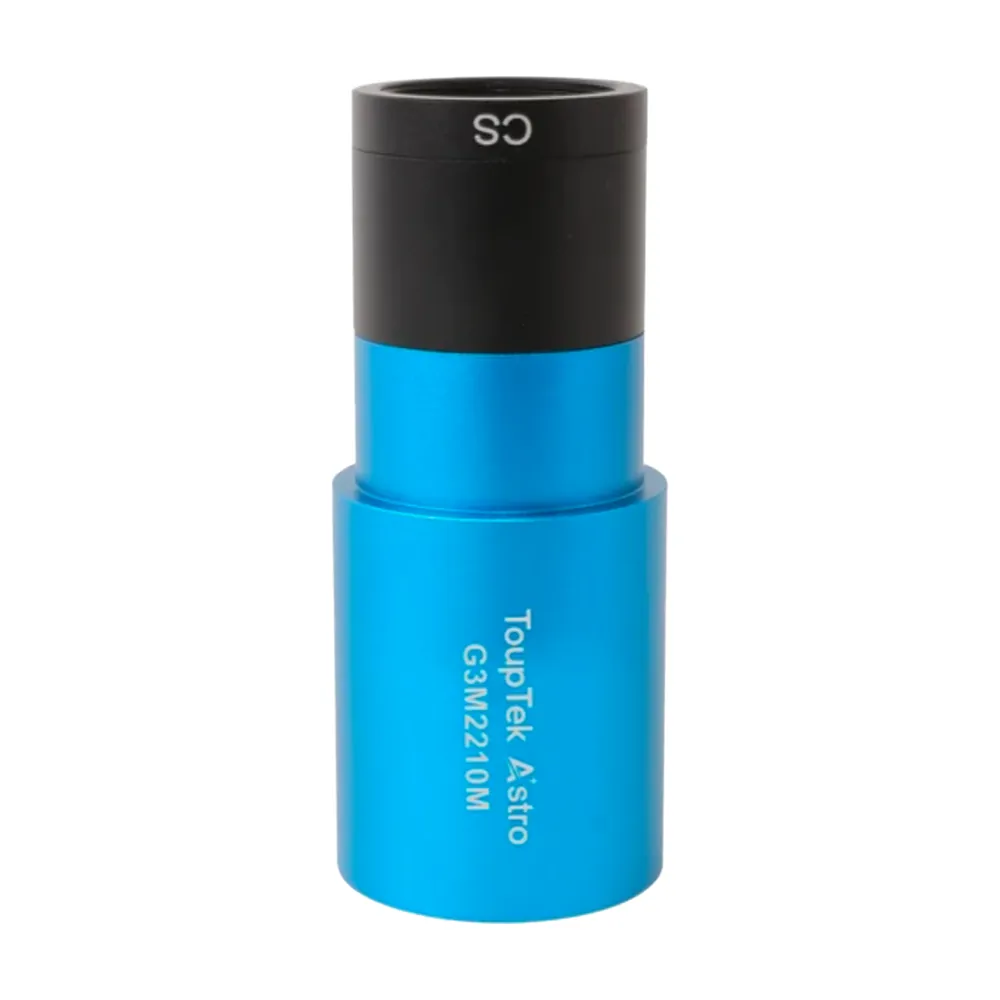

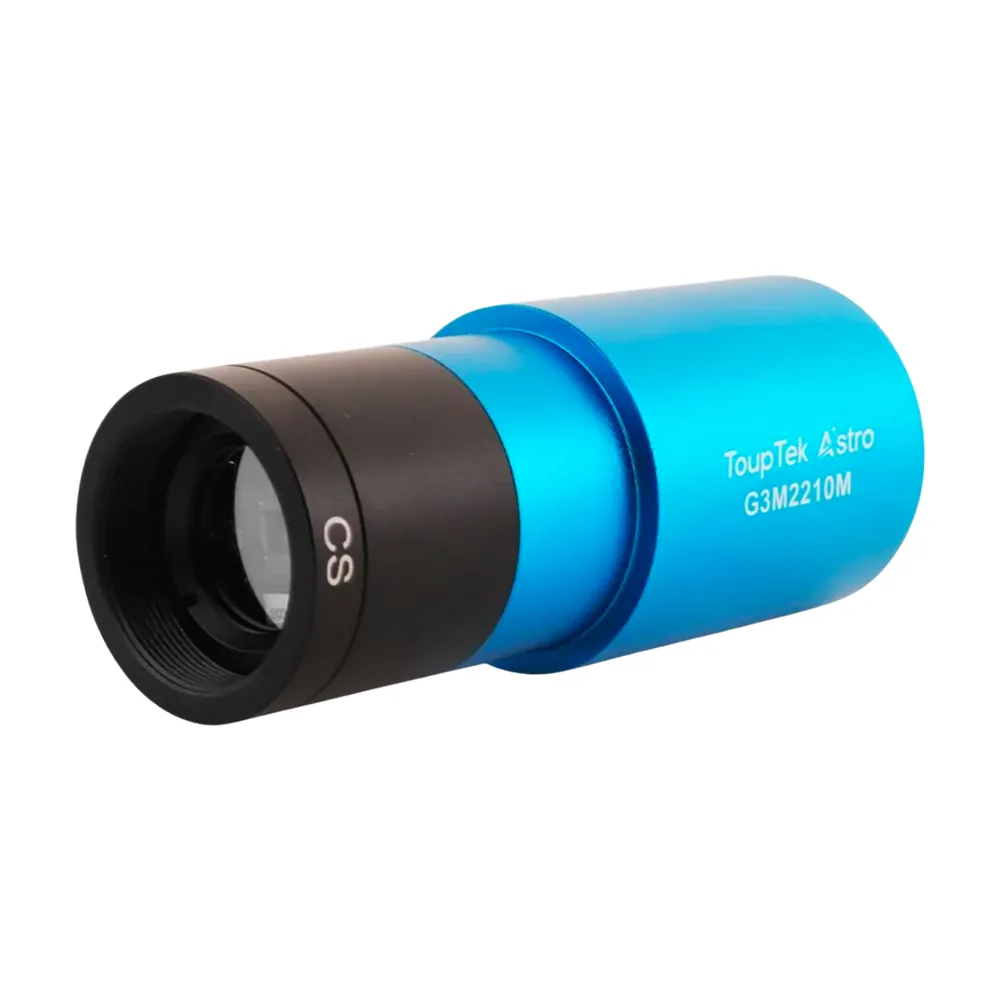

ToupTek G3M2210M Mono Camera
Uncooled mono camera with the SmartSens SC2210 1/1.8″ sensor. 2.1 MP, 4 µm pixels, 12-bit.
Original price was: £215.00.£195.00Current price is: £195.00.
Free Infrared Galaxy Set (LP825 filter and CS lens) while the sale is on
£5 tracked UK delivery, free on orders over £250
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- £5 tracked UK delivery, free on orders over £250. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- Manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same SC2210 sensor, other versionsSee all 2 SC2210 cameras
- ToupTek G3M2210C Colour CameraToupTek · colour · uncooled
Overview
The ToupTek G3M2210M is a mono planetary camera with the SmartSens SC2210, a 1/1.8″ sensor of 2.1 megapixels with large 4 µm pixels. Peak quantum efficiency is above 92%.
It suits the Sun, the Moon and planets through filters at long focal lengths: around f/20 for the planets, so an SCT or Maksutov with a 2× Barlow. Full resolution runs at 150 frames per second in 8-bit mode, or 93 in 12-bit, and read noise drops to 0.47 e⁻.
Large, sensitive pixels and a small frame also make it a good guide camera, including on an off-axis guider where stars are faint.
Connections and fitting
The camera runs entirely from its USB 3.0 cable, so there’s no separate power lead to route. It fits the telescope with the 1.25″ nosepiece, which also takes 1.25″ filters, or with a C or CS adapter for lenses. An ST4 port and cable mean it can double as a guide camera. A 512 MB buffer holds frames while they transfer, so high frame rates don’t drop frames on a slower laptop.
Specifications
| Sensor | SmartSens SC2210, mono |
|---|---|
| Sensor format | 1/1.8″ |
| Sensor size | 7.68 × 4.32 mm |
| Diagonal | 8.81 mm |
| Image size | 1920 × 1080 px |
| Sensor megapixels | 2.1 MP |
| Pixel size | 4 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 8.5 ke⁻ |
| Read noise, low to high gain | 3.2–0.47 e⁻ |
| Peak QE | >92% |
| Cooling | None |
| Max frame rate | 150 fps (8-bit) |
| Image buffer | 512 MB |
| Back focus | 12.5 / 17.5 mm |
| Connection | USB 3.0 |
| Adapters | 1.25″ nosepiece, C, CS |
| Weight | 70 g |
| Body diameter | 37 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 4 µm pixels and 7.68 × 4.32 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 3.3″ per pixel | 1.8° × 59′ |
| 400 mm | 2.1″ per pixel | 1.1° × 37′ |
| 600 mm | 1.4″ per pixel | 44′ × 25′ |
| 1,000 mm | 0.83″ per pixel | 26′ × 15′ |
| 2,000 mm | 0.41″ per pixel | 13′ × 7′ |
Specifications from the manufacturer. Check with us if a figure matters for your setup.
In the box
- Infrared Galaxy Set (LP825 filter and CS lens)Free while the sale is on
- Camera body
- USB 3.0 cable, 2 m
- ST4 guide cable, 2 m
- 1.25″ nosepiece
- Quick start guide
