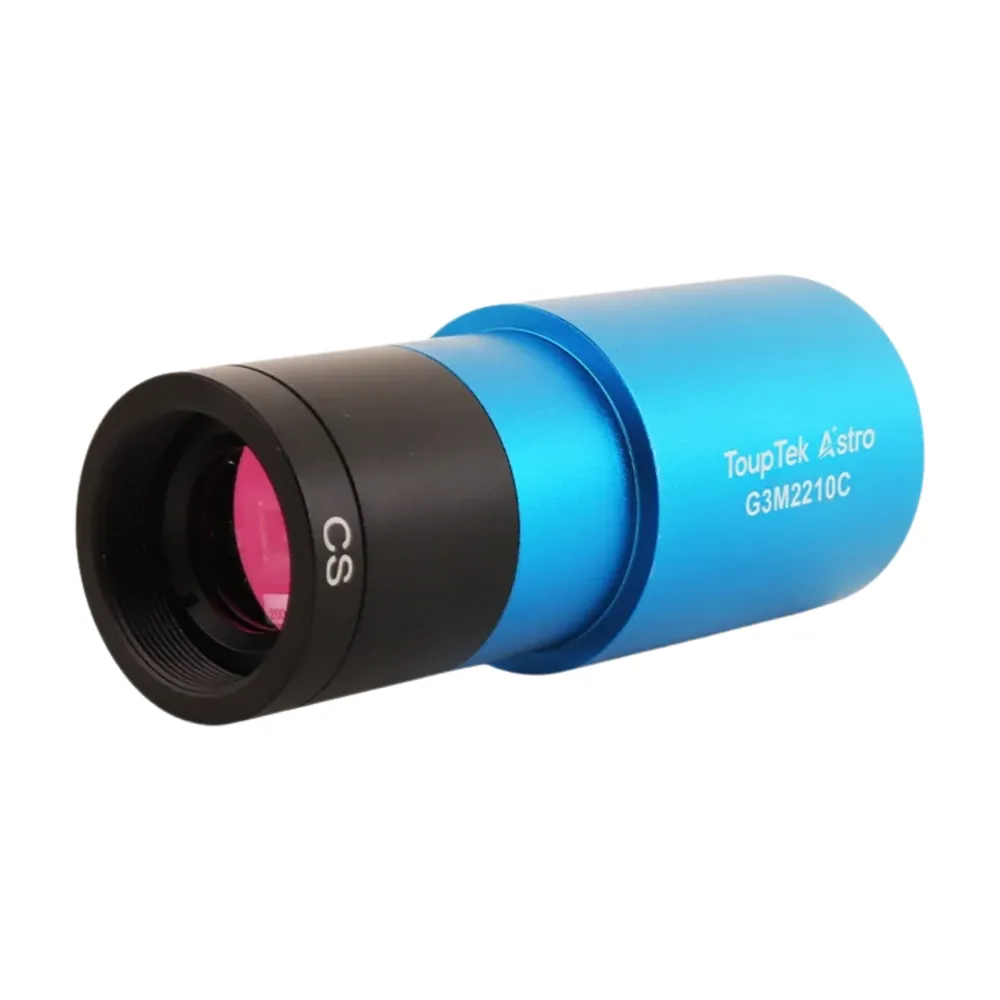

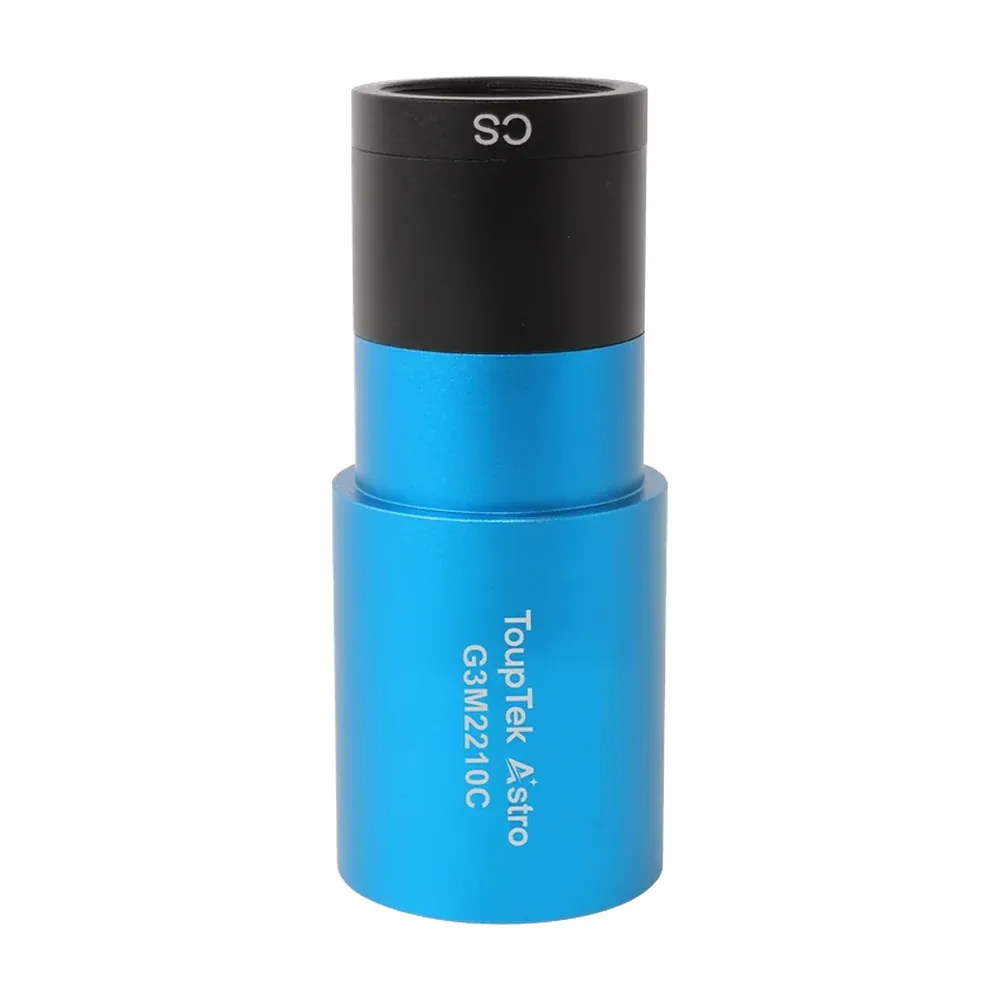

ToupTek G3M2210C Colour Camera
Uncooled colour camera with the SmartSens SC2210 1/1.8″ sensor. 2.1 MP, 4 µm pixels, 12-bit.
Original price was: £220.00.£195.00Current price is: £195.00.
£5 tracked UK delivery, free on orders over £250
In stock · dispatched next working day
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- £5 tracked UK delivery, free on orders over £250. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- Manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same SC2210 sensor, other versionsSee all 2 SC2210 cameras
- ToupTek G3M2210M Mono CameraToupTek · mono · uncooled
Overview

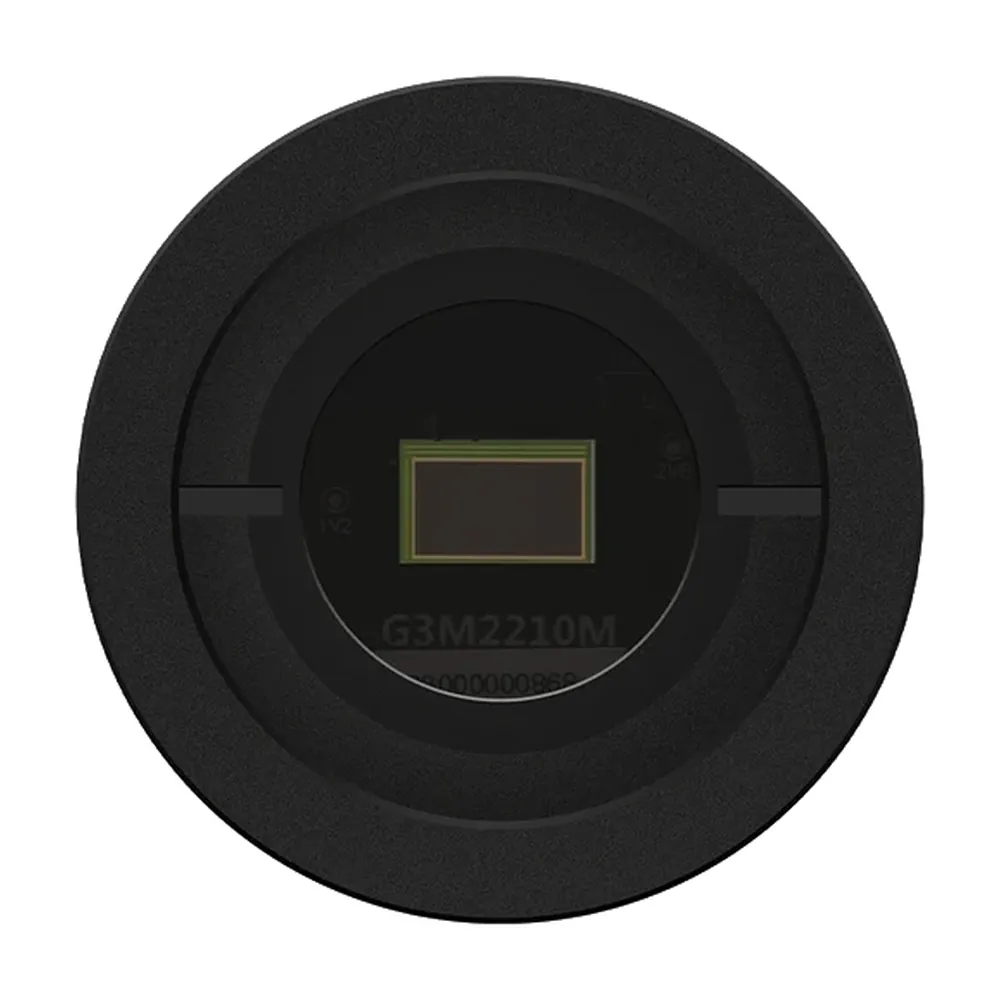

The ToupTek G3M2210C is a colour planetary camera with the SmartSens SC2210, a 1/1.8″ sensor of 2.1 megapixels with large 4 µm pixels. Peak quantum efficiency is above 92%.
Large pixels need a longer focal ratio for the planets, around f/20, which suits SCTs and Maksutovs with a 2× Barlow. In return the camera runs at 150 frames per second at full resolution, and read noise drops to 0.47 e⁻.
The small 1080p frame keeps files manageable, and the large pixels make it a sensitive guide camera too.
Choose the window when you order. The IR-cut version is for normal colour imaging. Clear AR-coated glass lets infrared through, for use with an IR-pass filter on the planets and Moon, or your own UV/IR-cut filter.
Connections and fitting

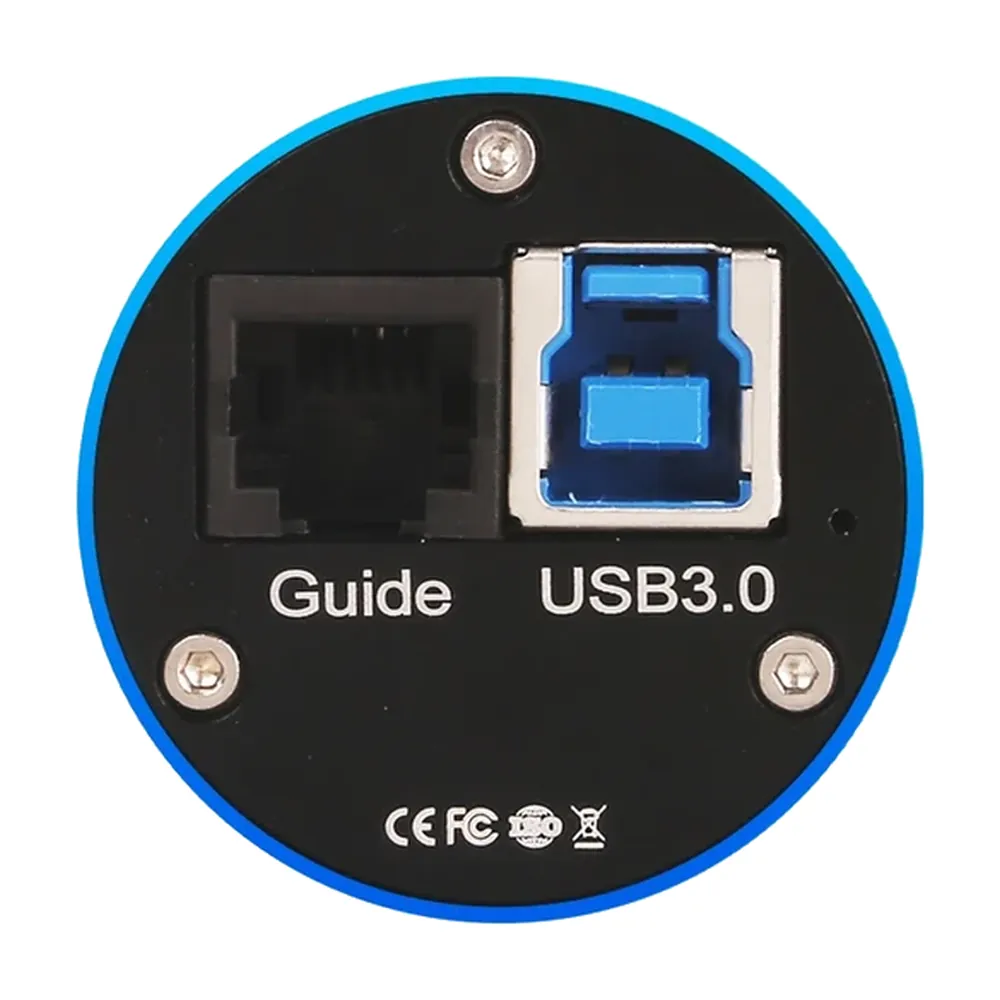

The camera runs entirely from its USB 3.0 cable, so there’s no separate power lead to route. It fits the telescope with the 1.25″ nosepiece, which also takes 1.25″ filters, or with a C or CS adapter for lenses. An ST4 port and cable mean it can double as a guide camera. A 512 MB buffer holds frames while they transfer, so high frame rates don’t drop frames on a slower laptop.
Specifications
| Sensor | SmartSens SC2210, colour |
|---|---|
| Sensor format | 1/1.8″ |
| Sensor size | 7.68 × 4.32 mm |
| Diagonal | 8.81 mm |
| Image size | 1920 × 1080 px |
| Sensor megapixels | 2.1 MP |
| Pixel size | 4 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 8.5 ke⁻ |
| Read noise, low to high gain | 3.2–0.47 e⁻ |
| Peak QE | >92% |
| Cooling | None |
| Max frame rate | 150 fps (12-bit) |
| Image buffer | 512 MB |
| Back focus | 12.5 / 17.5 mm |
| Connection | USB 3.0 |
| Adapters | 1.25″ nosepiece, C, CS |
| Weight | 70 g |
| Body diameter | 37 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 4 µm pixels and 7.68 × 4.32 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 3.3″ per pixel | 1.8° × 59′ |
| 400 mm | 2.1″ per pixel | 1.1° × 37′ |
| 600 mm | 1.4″ per pixel | 44′ × 25′ |
| 1,000 mm | 0.83″ per pixel | 26′ × 15′ |
| 2,000 mm | 0.41″ per pixel | 13′ × 7′ |
Specifications from the manufacturer. Check with us if a figure matters for your setup.
In the box
- Camera body
- USB 3.0 cable, 2 m
- ST4 guide cable, 2 m
- 1.25″ nosepiece
- Quick start guide
