Player One Apollo-M MAX Mono Camera
Uncooled mono camera with the Sony IMX432 1.1″ sensor. 1.8 MP, 9 µm pixels, global shutter, 12-bit.
£465.00
Free tracked UK delivery
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX432 sensor, other versionsSee all 3 IMX432 cameras
- ToupTek ATR432C Colour Cooled CameraToupTek · colour · cooled
- ToupTek ATR432M Mono Cooled CameraToupTek · mono · cooled
Overview

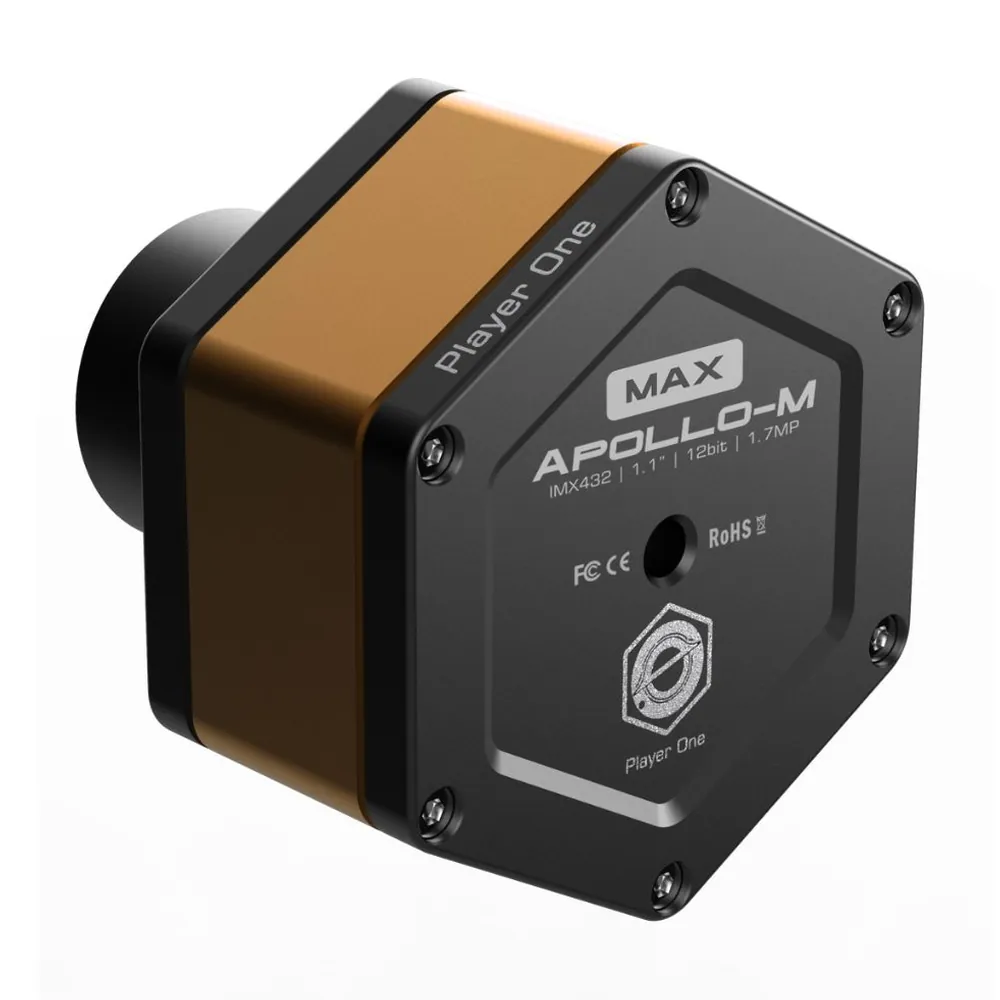

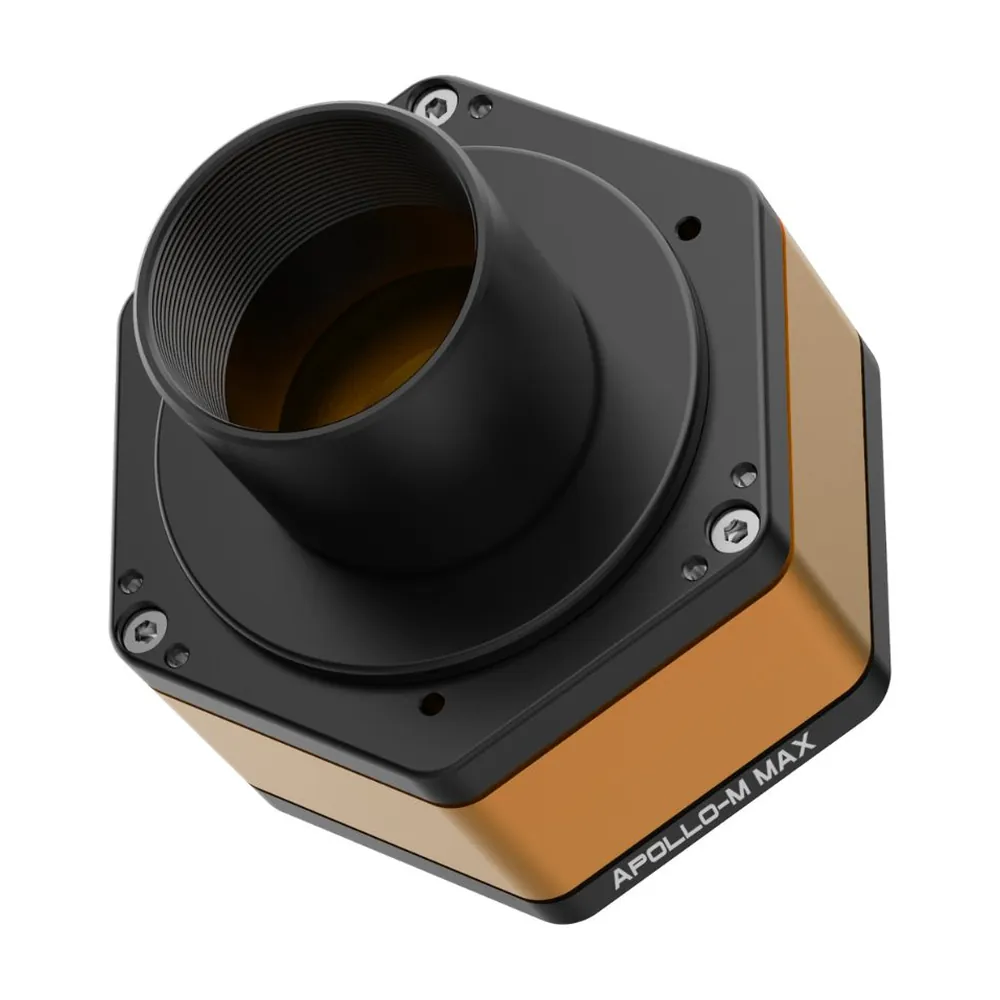

The Player One Apollo-M MAX is an uncooled mono astronomy camera built around Sony’s IMX432 global-shutter sensor. It is made for imaging the Sun and the Moon.
The 9 µm pixels are large, and each holds up to 100,000 electrons. That helps with the contrast between a bright solar disc and faint prominences. The camera runs at 126 frames per second at full resolution.
The 1.1″ sensor measures 14.5 × 9.9 mm, so the whole solar disc fits on the short side at focal lengths up to about 1,000 mm. A global shutter reads the whole frame at once, so moving seeing and the International Space Station don’t distort it.
The sensor tilt plate helps remove Newton’s rings in hydrogen-alpha and calcium-K images. A 256 MB buffer stops dropped frames on a slower laptop or USB 2.0 port.
The 160 g body has a passive heatsink. Our Player One Active Cooling System fits if you want it to run cooler on long sessions.
Only use the camera on the Sun with a proper solar filter, Herschel wedge or solar telescope.
Specifications
| Sensor | Sony IMX432, mono |
|---|---|
| Sensor format | 1.1″ |
| Sensor size | 14.5 × 9.9 mm |
| Diagonal | 17.5 mm |
| Image size | 1608 × 1104 px |
| Sensor megapixels | 1.8 MP |
| Pixel size | 9 µm |
| Shutter | Global |
| ADC | 12 bit |
| Full well | 100 ke⁻ |
| Read noise, low to high gain | 22.9–2.6 e⁻ |
| Peak QE | 79% |
| Cooling | None: passive heatsink (optional active cooling kit) |
| Max frame rate | 126 fps (12-bit) |
| Image buffer | 256 MB |
| Back focus | 12.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, 1.25″ |
| Weight | 160 g |
| Body diameter | 66 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 9 µm pixels and 14.5 × 9.9 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 7.4″ per pixel | 3.3° × 2.3° |
| 400 mm | 4.6″ per pixel | 2.1° × 1.4° |
| 600 mm | 3.1″ per pixel | 1.4° × 57′ |
| 1,000 mm | 1.9″ per pixel | 50′ × 34′ |
| 2,000 mm | 0.93″ per pixel | 25′ × 17′ |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with 1.25″ T-mount
- USB 3.0 cable
- ST4 guide cable
- 1.25″ dust cover
- Air blower
- M2 hex key
