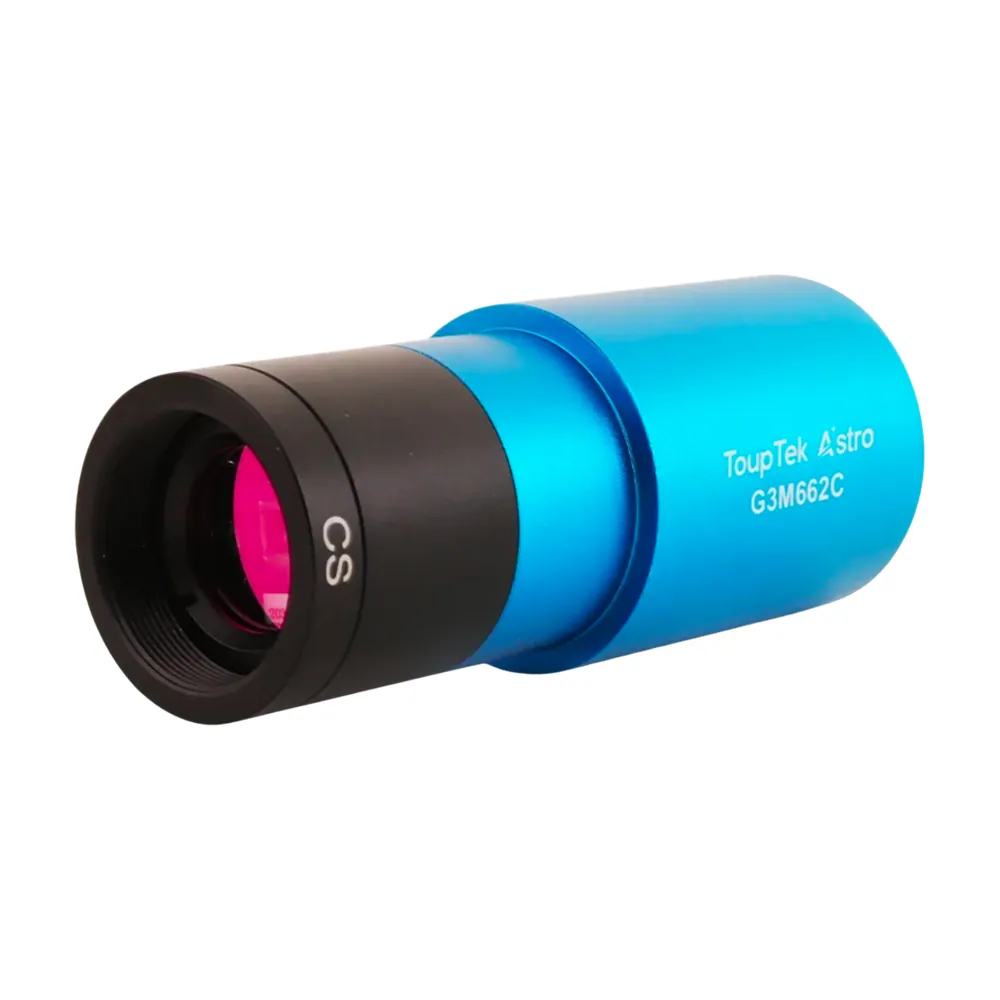

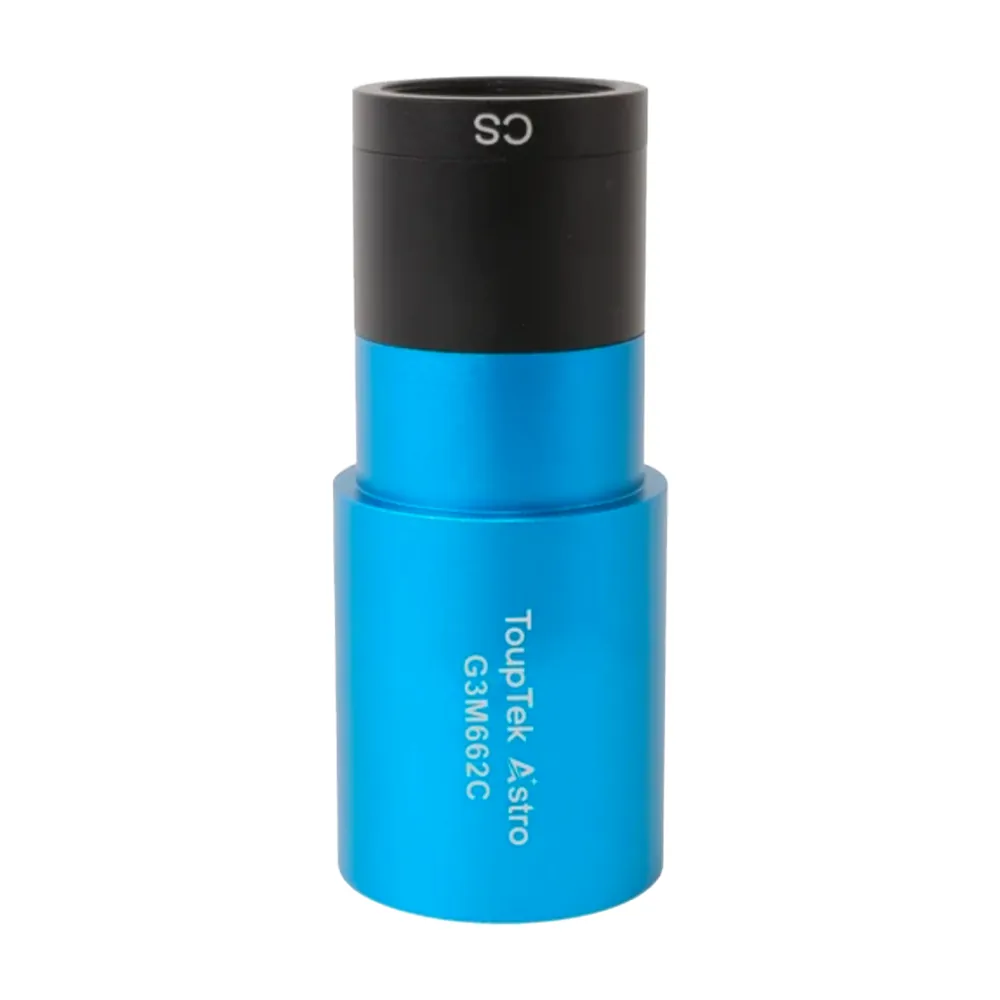

ToupTek G3M662C Colour Camera
Uncooled colour camera with the Sony IMX662 1/2.8″ sensor. 2.1 MP, 2.9 µm pixels, 12-bit.
£205.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX662 sensor, other versionsSee all 3
- Player One Mars 662M Mono CameraPlayer One · mono · uncooled
- Player One Mars-C II Colour CameraPlayer One · colour · uncooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- Manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview
The ToupTek G3M662C is a colour planetary camera with Sony’s IMX662, a 1/2.8″ STARVIS 2 sensor of 2.1 megapixels with 2.9 µm pixels. It replaces the popular IMX462 cameras and has the same strong near-infrared response.
The small 1080p frame reads out at 103 frames per second, which is what planetary imaging needs: more frames to choose from when the seeing steadies. For the planets it samples well at around f/15, so an SCT or Maksutov works at its native focal ratio or close to it. Read noise falls to 0.46 e⁻ in high gain mode.
It also makes a good guide camera, and a high full well of 39 ke⁻ in low gain mode stops bright guide stars and the Moon from clipping.
Choose the window when you order. The IR-cut version is for normal colour imaging. Clear AR-coated glass lets infrared through, for use with an IR-pass filter on the planets and Moon, or your own UV/IR-cut filter.
Connections and fitting
The camera runs entirely from its USB 3.0 cable, so there’s no separate power lead to route. It fits the telescope with the 1.25″ nosepiece, which also takes 1.25″ filters, or with a C or CS adapter for lenses. An ST4 port and cable mean it can double as a guide camera. A 512 MB buffer holds frames while they transfer, so high frame rates don’t drop frames on a slower laptop.
Specifications
| Sensor | Sony IMX662, colour |
|---|---|
| Sensor format | 1/2.8″ |
| Sensor size | 5.6 × 3.2 mm |
| Diagonal | 6.44 mm |
| Resolution | 1920 × 1080 px |
| Megapixels | 2.1 MP |
| Pixel size | 2.9 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 39 ke⁻ |
| Read noise | 5.35–0.46 e⁻ |
| Peak QE | >91% |
| Cooling | None |
| Max frame rate | 103.4 fps (8-bit) |
| Image buffer | 512 MB |
| Back focus | 12.5 / 17.5 mm |
| Connection | USB 3.0 |
| Adapters | 1.25″ nosepiece, C, CS |
| Weight | 70 g |
| Body diameter | 37 mm |
Specifications from the manufacturer. Check with us if a figure matters for your setup.
In the box
- Camera body
- USB 3.0 cable, 2 m
- ST4 guide cable, 2 m
- 1.25″ nosepiece
- Quick start guide
