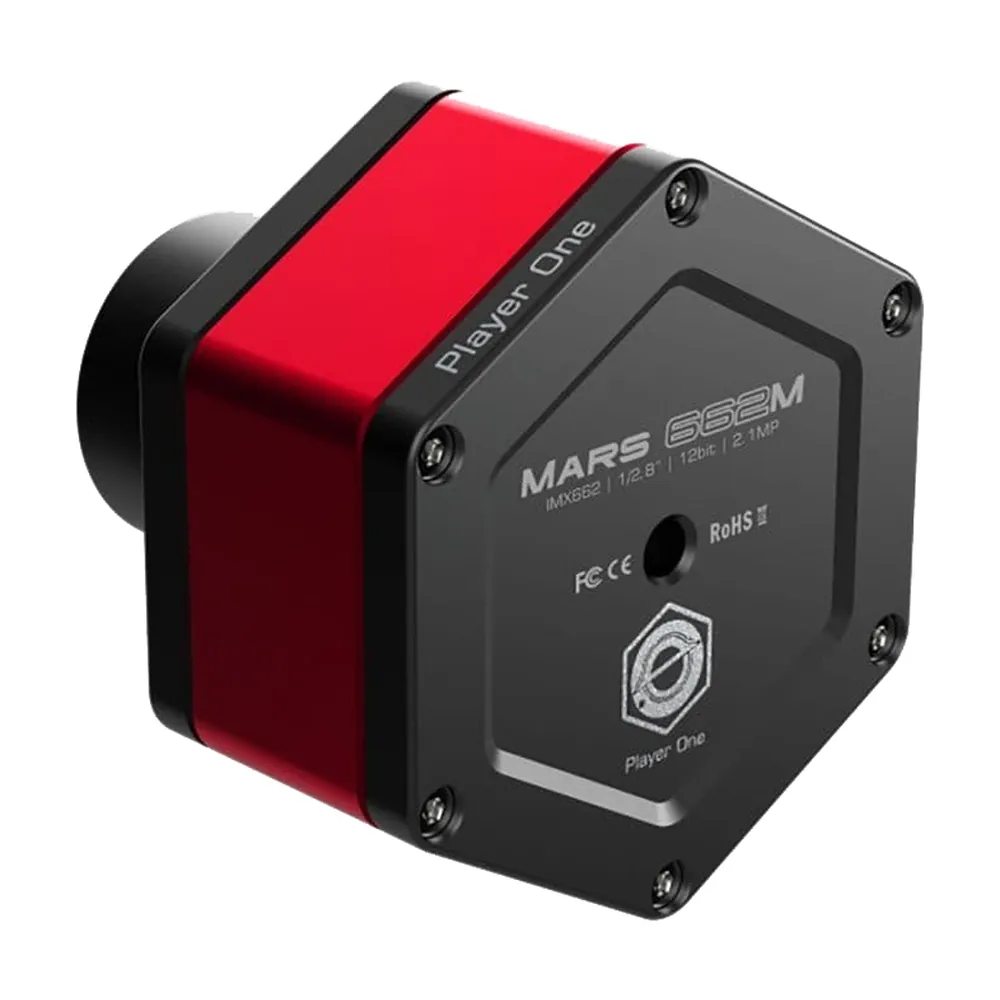

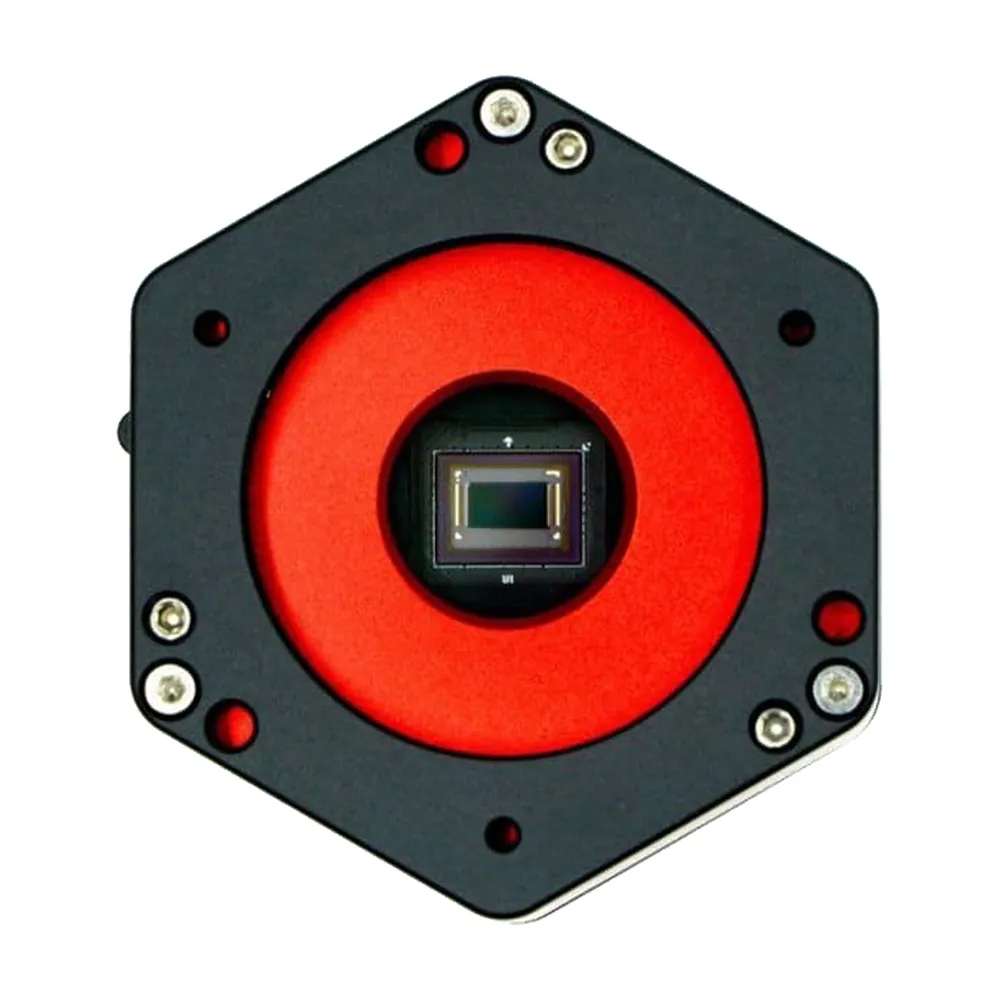

Player One Mars 662M Mono Camera
Uncooled mono camera with the Sony IMX662 1/2.8″ sensor. 2.1 MP, 2.9 µm pixels, 12-bit.
£205.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX662 sensor, other versionsSee all 3
- Player One Mars-C II Colour CameraPlayer One · colour · uncooled
- ToupTek G3M662C Colour CameraToupTek · colour · uncooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview
The Player One Mars 662M is an uncooled mono astronomy camera built around Sony’s IMX662 sensor. It is a small, fast camera for the planets and the Moon, and it doubles as a guide camera.
The IMX662 replaces the IMX462 used in the Mars-M II. Its pixels are the same 2.9 µm, but each holds up to 54,000 electrons, so bright planets are less likely to saturate. Read noise falls to 0.7 e⁻ at high gain.
The camera runs at 108 frames per second at full resolution, and faster with a smaller region of interest. The pixels are best matched at around f/14. On a Celestron C8 at f/10 the field is about 9.5 × 5.4 arcminutes, plenty for any planet.
The sensor is sensitive in the near infrared, and the Super AR window passes light from 310 to 1100 nm. With an IR-pass filter you can still get sharp planetary detail in poor seeing.
For guiding, a 200 mm guide scope gives 3″ per pixel. A 256 MB buffer stops dropped frames on a slow laptop or a USB 2.0 port, and dark frames show no amp glow.
Specifications
| Sensor | Sony IMX662, mono |
|---|---|
| Sensor format | 1/2.8″ |
| Sensor size | 5.6 × 3.2 mm |
| Diagonal | 6.44 mm |
| Resolution | 1936 × 1100 px |
| Megapixels | 2.1 MP |
| Pixel size | 2.9 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 54 ke⁻ |
| Read noise | 6.7–0.7 e⁻ |
| Peak QE | 91% |
| Cooling | None |
| Max frame rate | 108 fps (10-bit) |
| Image buffer | 256 MB |
| Back focus | 12.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, 1.25″ |
| Weight | 150 g |
| Body diameter | 66 mm |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with 1.25″ T-mount
- USB 3.0 cable
- ST4 guide cable
- 1.25″ dust cover
- Air blower
- M2 hex key
