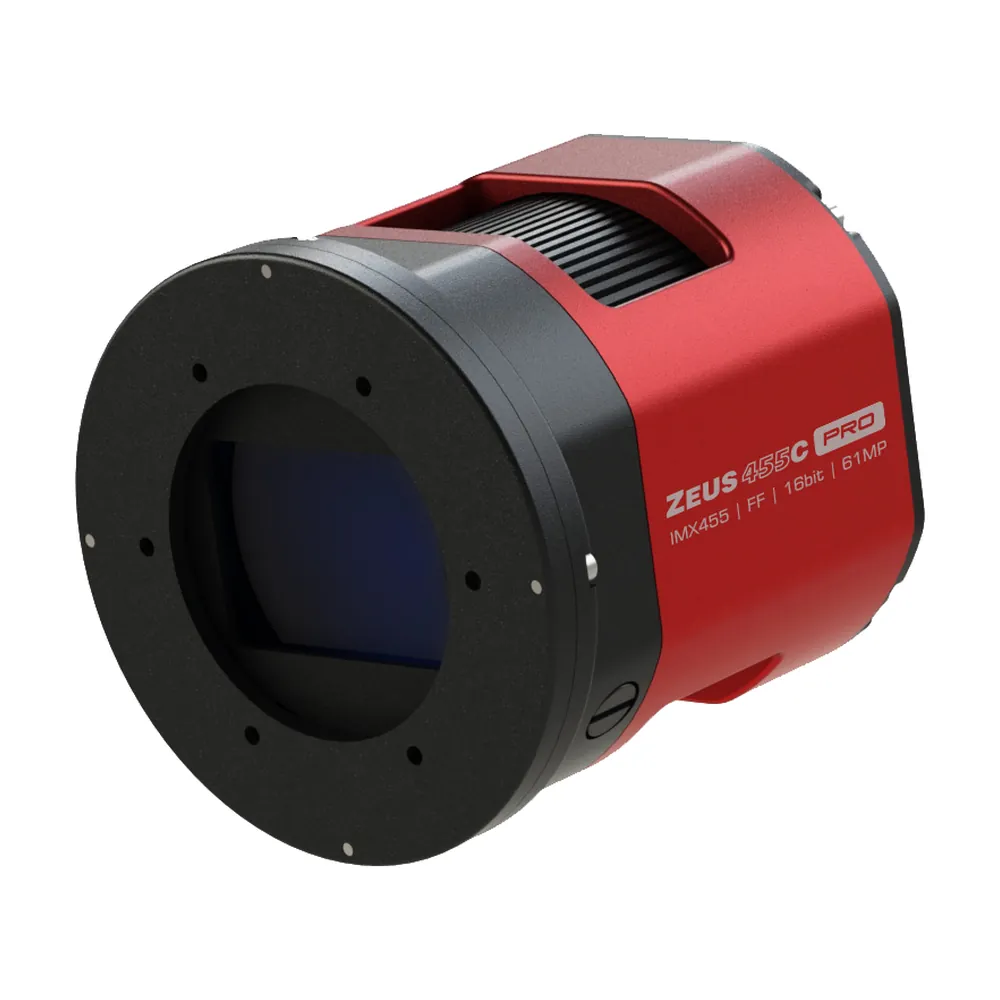

Player One Zeus 455C Pro Colour Cooled Camera
Cooled colour camera with the Sony IMX455 Full frame sensor. 61 MP, 3.76 µm pixels, 16-bit.
£3,455.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX455 sensor, other versionsSee all 2
- Player One Zeus 455M Pro Mono Cooled CameraPlayer One · mono · cooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview
The Player One Zeus 455C Pro is a cooled colour astronomy camera built around Sony’s full-frame IMX455 sensor. Its 61 megapixels and 43.3 mm diagonal make it a camera for wide-field deep-sky imaging with large, well-corrected astrographs.
The 3.76 µm pixels suit short to medium focal lengths. On a 500 mm astrograph it samples at 1.55″ per pixel over a field of about 4.1° × 2.75°, wide enough for the whole of the North America and Pelican nebulae in one frame.
The telescope must illuminate and correct a 44 mm field, or the corners will show soft stars and vignetting. A 2″ or 50 mm dual-band or light-pollution filter will cover the sensor.
Each pixel holds up to 71,600 electrons at low gain, so bright stars keep their colour in long exposures. Read noise falls to about 1.5 e⁻ in high-gain mode, and the 16-bit output gives smooth gradations in faint nebulosity.
Delta-T is about 35 °C below the air temperature, and Player One suggests running 30 °C below for the steadiest set point. Dark frames show no amp glow, so they can be reused across nights at the same temperature and gain.

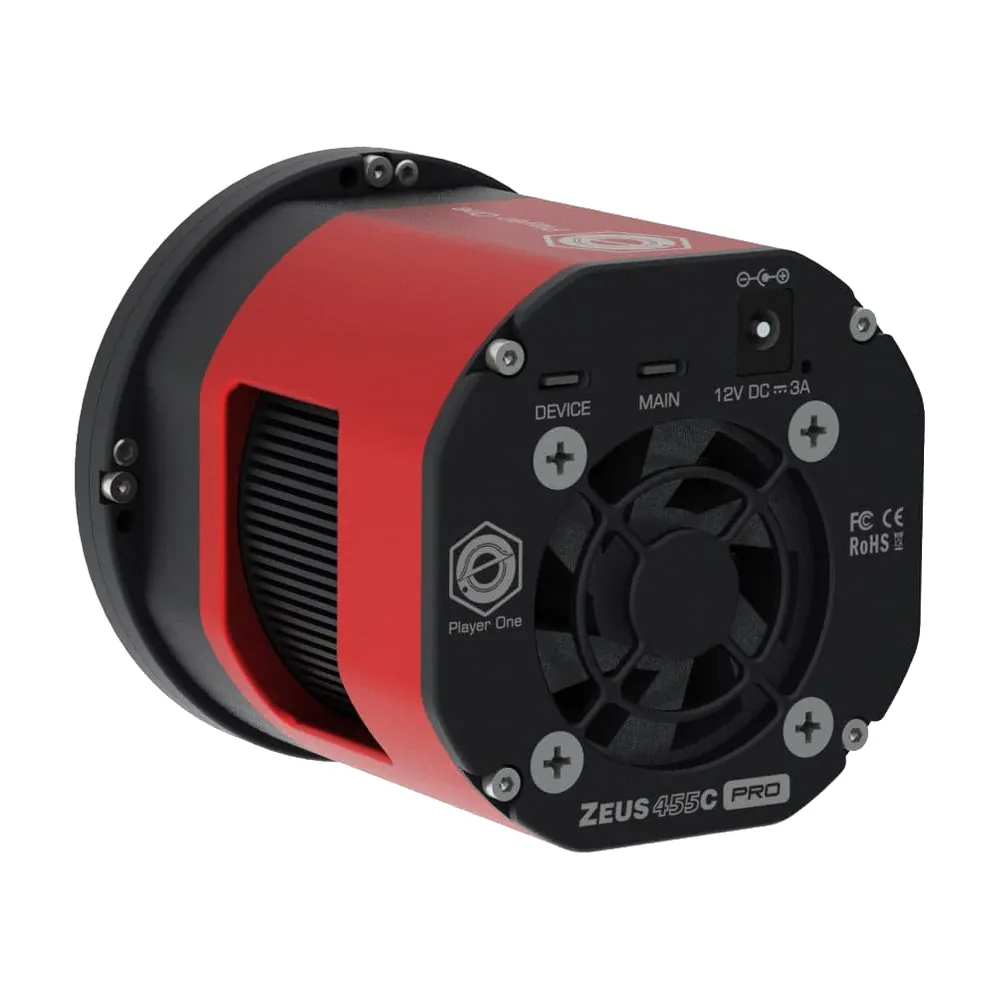

A heater in front of the sensor keeps dew off the window, at a power you set. Tilt is adjusted from the back with a four-point plate. The 512 MB buffer holds each 61 MP frame while it transfers, so a slow laptop or USB 2.0 link doesn’t drop frames.
Back focus is 17.5 mm from the M54 thread, or 12.5 mm with the tilt plate removed, which leaves room for a filter wheel and off-axis guider before the usual 55 mm.
The camera weighs 650 g. The cooler runs from 12 V, and the power supply is not included: Player One recommends one rated at 5 A or more.
Specifications
| Sensor | Sony IMX455, colour |
|---|---|
| Sensor format | Full frame |
| Sensor size | 36 × 24 mm |
| Diagonal | 43.3 mm |
| Resolution | 9576 × 6388 px |
| Megapixels | 61 MP |
| Pixel size | 3.76 µm |
| Shutter | Rolling |
| ADC | 16 bit |
| Full well | 71.6 ke⁻ |
| Read noise | 4.2–1.27 e⁻ |
| Peak QE | 80% |
| Cooling | Two-stage TEC, 35 °C ± 2 °C below ambient |
| Max frame rate | 3.2 fps (16-bit), 6.5 (8-bit) |
| Image buffer | 512 MB |
| Back focus | 17.5 mm (12.5 without the tilt plate) |
| Connection | USB 3.0 (Type-C) |
| Adapters | M54×0.75, 2″ |
| Weight | 650 g |
| Body diameter | 90 mm |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with metal cover
- M54 extenders, 17.5 mm and 20 mm
- M54 to M48 adapter, 17.5 mm
- M48 to M42 adapter
- Air blower
- USB 3.2 cable, Type-C to Type-A, 2 m
- USB 2.0 cables, Type-C to Type-C and Type-C to Type-B, 0.5 m
- M2 hex key and M2.5 screws
- Cable tie
- Camera bag
Not included
- Power supply: 12 V, 5 A or more recommended
