Player One Poseidon-M Pro Mono Cooled Camera
Cooled mono camera with the Sony IMX571 APS-C sensor. 26 MP, 3.76 µm pixels, 16-bit.
£1,785.00
Free tracked UK delivery
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX571 sensor, other versionsSee all 6 IMX571 cameras
- Player One Poseidon-C Pro Colour Cooled CameraPlayer One · colour · cooled
- ToupTek ATR2600C Colour Cooled CameraToupTek · colour · cooled
- ToupTek ATR2600M Mono Cooled CameraToupTek · mono · cooled
- ToupTek SkyEye26AC Plus Colour Cooled CameraToupTek · colour · cooled
Overview

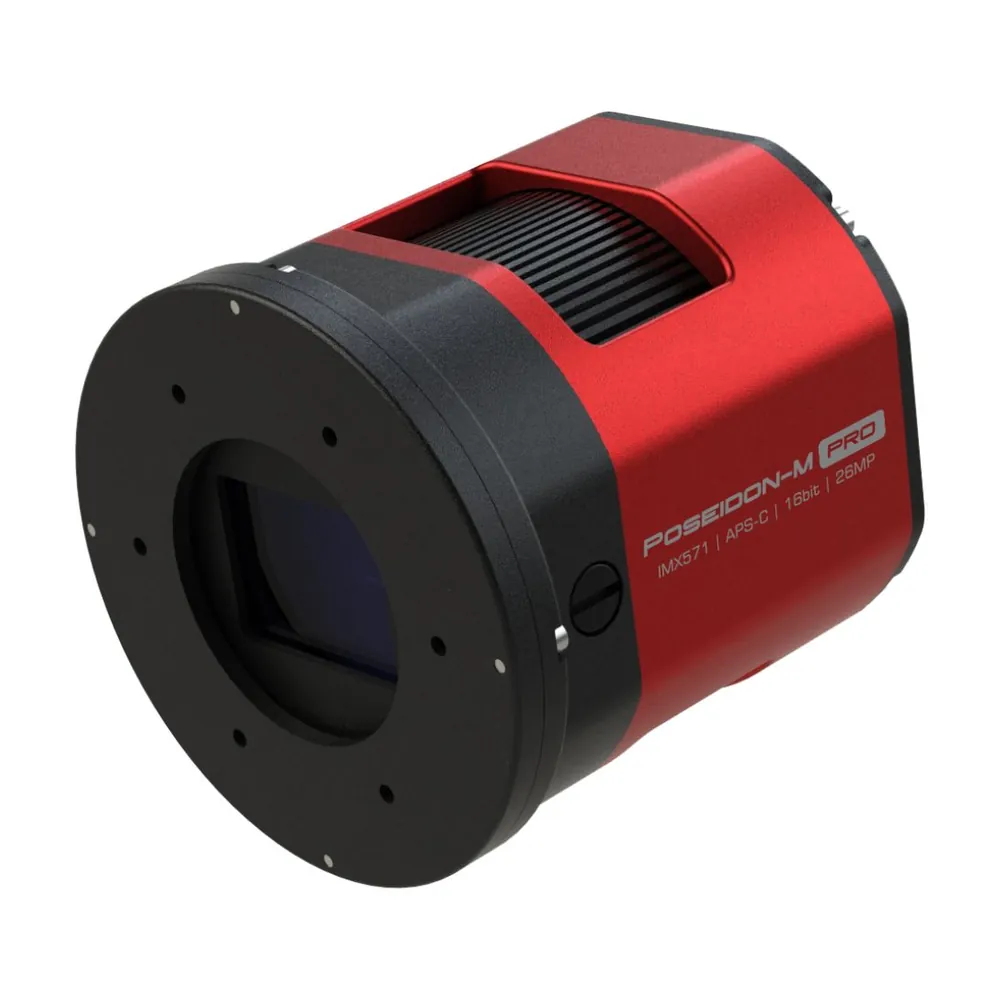

The Player One Poseidon-M Pro is a cooled mono astronomy camera built around Sony’s APS-C IMX571 sensor. It is a deep-sky camera for narrowband and LRGB imaging with refractors and astrographs.
The 3.76 µm pixels suit short to medium focal lengths. On a 600 mm refractor it samples at 1.29″ per pixel over a field of about 2.2° × 1.5°. The 28.3 mm diagonal needs a flattener or reducer that corrects that much field; 36 mm or 2″ filters cover it.
Peak QE is about 91%. At low gain each pixel holds 71,700 electrons and the output is 16-bit. In high-gain mode read noise falls to about 1.4 e⁻, which helps with 3 nm narrowband filters. Dark frames show no amp glow.

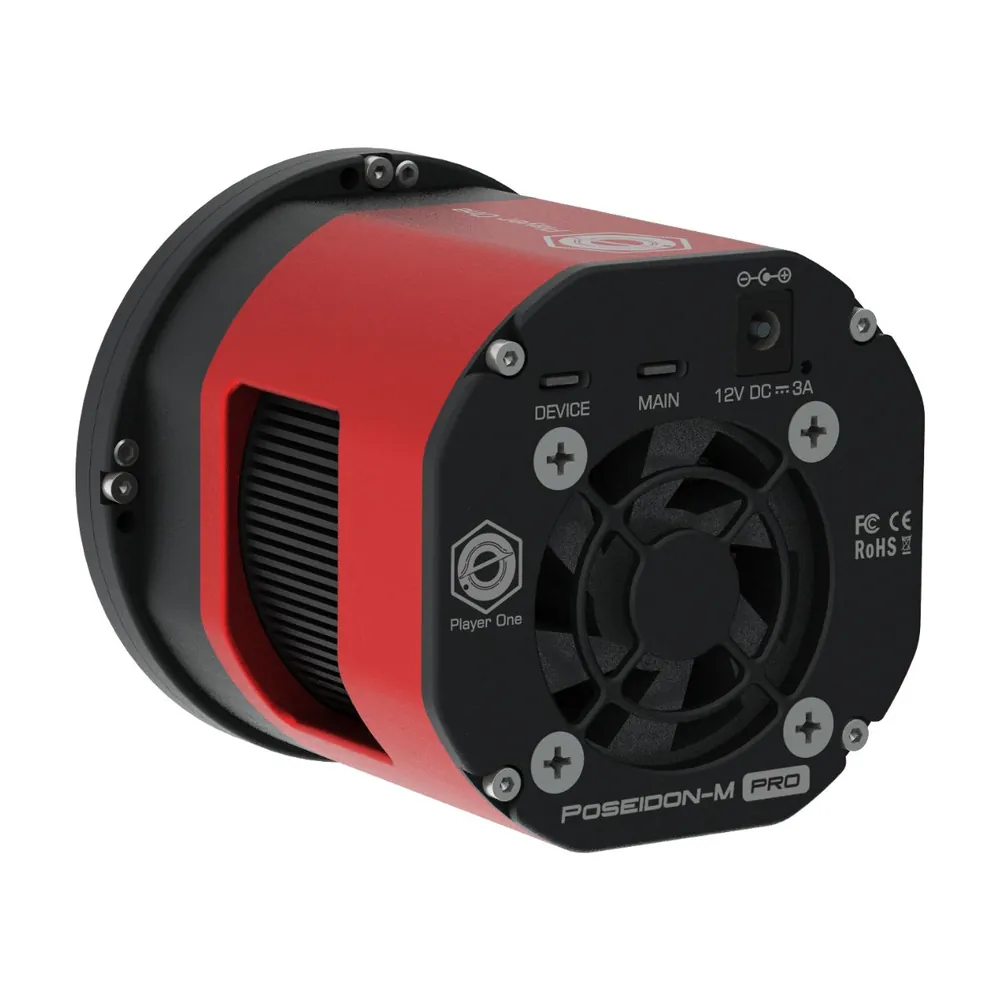

Two-stage cooling holds the sensor about 40 °C below the air temperature, at a set point you choose. A heater keeps dew off the window. Tilt is adjusted from the back with a four-point plate.
Back focus is 17.5 mm, or 12.5 mm with the tilt plate removed, leaving room for a filter wheel and off-axis guider. A 512 MB buffer stops dropped frames on slower laptops.
The camera weighs 650 g. The cooler runs from 12 V, and the power supply is not included: Player One recommends one rated at 5 A or more.
Specifications
| Sensor | Sony IMX571, mono |
|---|---|
| Sensor format | APS-C |
| Sensor size | 23.5 × 15.7 mm |
| Diagonal | 28.3 mm |
| Image size | 6252 × 4176 px |
| Sensor megapixels | 26 MP |
| Pixel size | 3.76 µm |
| Shutter | Rolling |
| ADC | 16 bit |
| Full well | 71.7 ke⁻ |
| Read noise, low to high gain | 3.9–1.0 e⁻ |
| Peak QE | 91% |
| Cooling | Two-stage TEC, 40 °C ± 2 °C below ambient |
| Max frame rate | 10 fps (10-bit) |
| Image buffer | 512 MB |
| Back focus | 17.5 mm (12.5 without the tilt plate) |
| Connection | USB 3.0 (Type-C) |
| Adapters | M48×0.75, 2″, 1.25″ |
| Weight | 650 g |
| Body diameter | 90 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 3.76 µm pixels and 23.5 × 15.7 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 3.1″ per pixel | 5.4° × 3.6° |
| 400 mm | 1.9″ per pixel | 3.4° × 2.2° |
| 600 mm | 1.3″ per pixel | 2.2° × 1.5° |
| 1,000 mm | 0.78″ per pixel | 1.3° × 54′ |
| 2,000 mm | 0.39″ per pixel | 40′ × 27′ |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with metal cover
- M48 extenders, 17.5 mm and 20 mm
- M48 to M42 adapter
- T-mount and 1.25″ cover
- Air blower
- USB 3.2 cable, Type-C to Type-A, 2 m
- USB 2.0 cables, Type-C to Type-C and Type-C to Type-B, 0.5 m
- M2 hex key and M2.5 screws
- Cable tie
- Camera bag
Not included
- Power supply: 12 V, 5 A or more recommended
