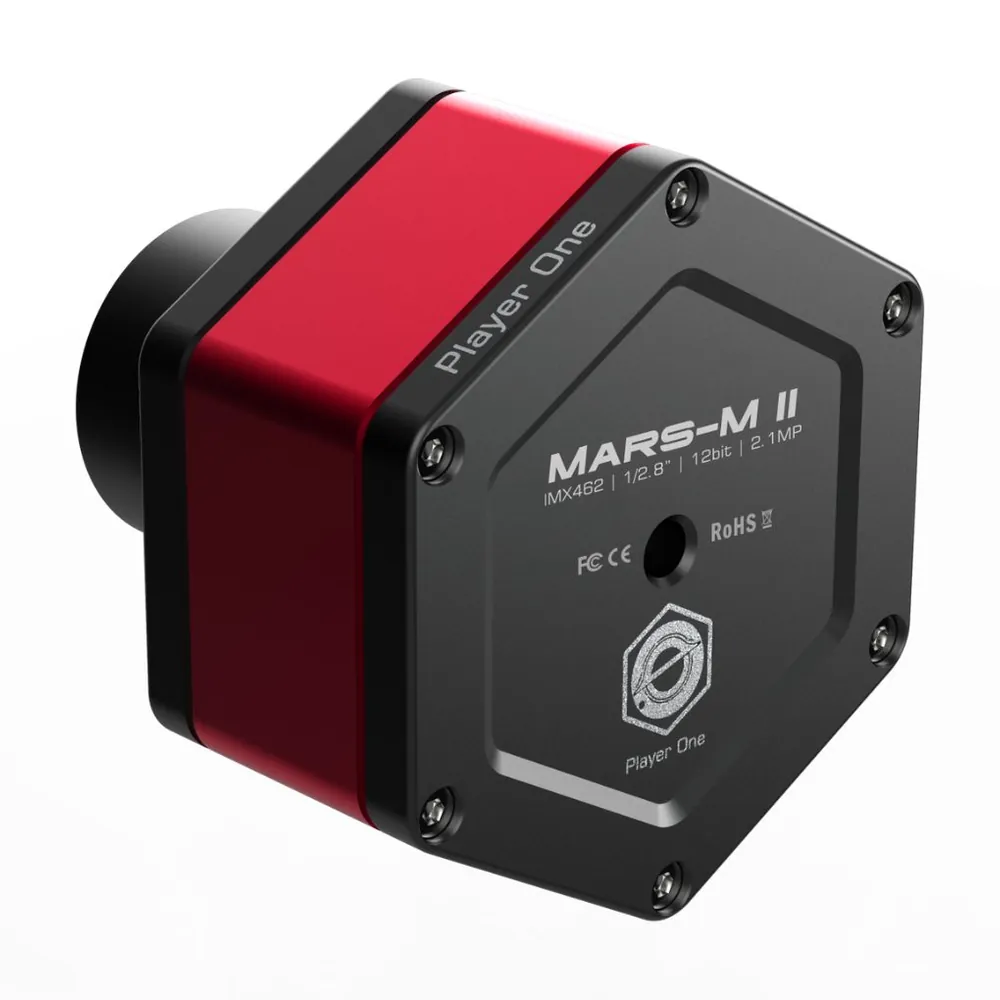

Player One Mars-M II Mono Camera
Uncooled mono camera with the Sony IMX462 1/2.8″ sensor. 2.1 MP, 2.9 µm pixels, 12-bit.
£265.00
Free tracked UK delivery
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX462 sensor, other versionsSee all 3 IMX462 cameras
- Player One Ceres 462M Mono CameraPlayer One · mono · uncooled
- Player One Mars-C Colour CameraPlayer One · colour · uncooled
Overview
The Player One Mars-M II is an uncooled mono astronomy camera built around Sony’s IMX462 sensor. It is made for the planets, the Moon and guiding.
The IMX462 is very sensitive in the near infrared, with QE staying high well beyond 700 nm. With an IR-pass filter you can still get detail on nights when the seeing would blur a visible-light image. The window passes light from 310 to 1100 nm.
The camera runs at 136 frames per second at full resolution. Read noise falls to 0.7 e⁻ at high gain, and high-gain mode switches on automatically from gain 80. The 2.9 µm pixels are best matched at around f/14.
The full well is 12,000 electrons, small but enough for short planetary exposures. For a deeper well on the same pixel size, see the Mars 662M.
For guiding, a 200 mm guide scope gives 3″ per pixel. A 256 MB buffer stops dropped frames on a slow laptop or a USB 2.0 port.
Specifications
| Sensor | Sony IMX462, mono |
|---|---|
| Sensor format | 1/2.8″ |
| Sensor size | 5.6 × 3.2 mm |
| Diagonal | 6.5 mm |
| Image size | 1944 × 1096 px |
| Sensor megapixels | 2.1 MP |
| Pixel size | 2.9 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 12 ke⁻ |
| Read noise, low to high gain | 2.6–0.7 e⁻ |
| Peak QE | 91% |
| Cooling | None |
| Max frame rate | 136 fps (10-bit) |
| Image buffer | 256 MB |
| Back focus | 12.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, 1.25″ |
| Weight | 180 g |
| Body diameter | 66 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 2.9 µm pixels and 5.6 × 3.2 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 2.4″ per pixel | 1.3° × 44′ |
| 400 mm | 1.5″ per pixel | 48′ × 28′ |
| 600 mm | 1.00″ per pixel | 32′ × 18′ |
| 1,000 mm | 0.60″ per pixel | 19′ × 11′ |
| 2,000 mm | 0.30″ per pixel | 10′ × 6′ |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with 1.25″ T-mount
- USB 3.0 cable
- ST4 guide cable
- 1.25″ dust cover
- Air blower
- M2 hex key
