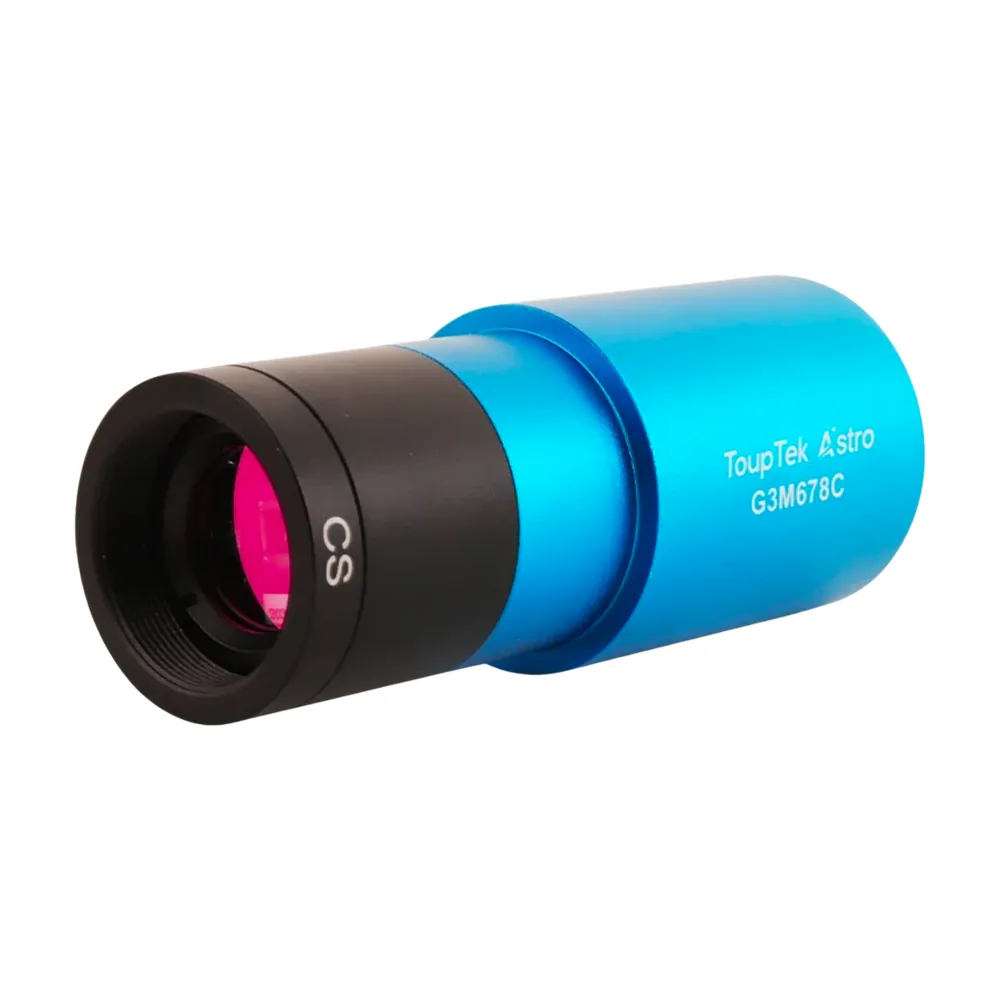

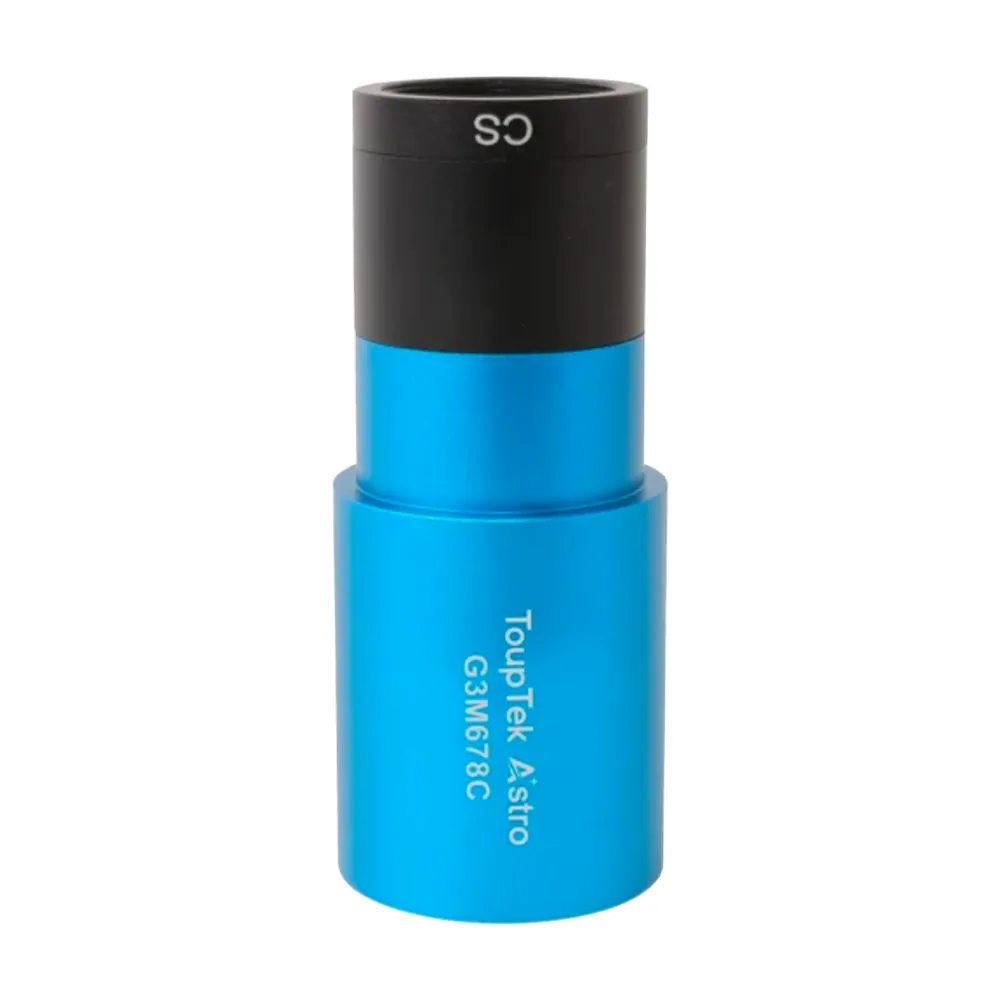

ToupTek G3M678C Colour Camera
Uncooled colour camera with the Sony IMX678 1/1.8″ sensor. 8.3 MP, 2 µm pixels, 12-bit.
£245.00
No VAT added. The price you see is the price you pay.
Usually in stock
If it isn’t on the shelf when you order, we’ll email you within one working day with a confirmed delivery date, usually within 10 days.
Same IMX678 sensor, other versionsSee all 2
- ToupTek G3M678M Mono CameraToupTek · mono · uncooled
- Delivery
- Tracked UK delivery. Costs are shown at checkout. Delivery
- Warranty
- Manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Overview
The ToupTek G3M678C is a colour planetary camera with Sony’s IMX678, a 1/1.8″ STARVIS 2 sensor of 8.3 megapixels with 2 µm pixels.
The 4K frame covers a large part of the Moon or the Sun in one shot, and a region of interest around a planet raises the frame rate. For the planets it samples well at around f/10, the native focal ratio of most SCTs. Read noise drops to 0.42 e⁻ and there’s no amp glow.
Full resolution runs at 47 frames per second in 8-bit mode, or 23 in 16-bit. It has good response in the near infrared, so an IR-pass filter is worth trying when the seeing is poor.
Choose the window when you order. The IR-cut version is for normal colour imaging. Clear AR-coated glass lets infrared through, for use with an IR-pass filter on the planets and Moon, or your own UV/IR-cut filter.
Connections and fitting
The camera runs entirely from its USB 3.0 cable, so there’s no separate power lead to route. It fits the telescope with the 1.25″ nosepiece, which also takes 1.25″ filters, or with a C or CS adapter for lenses. An ST4 port and cable mean it can double as a guide camera. A 512 MB buffer holds frames while they transfer, so high frame rates don’t drop frames on a slower laptop.
Specifications
| Sensor | Sony IMX678, colour |
|---|---|
| Sensor format | 1/1.8″ |
| Sensor size | 7.7 × 4.3 mm |
| Diagonal | 8.8 mm |
| Resolution | 3840 × 2160 px |
| Megapixels | 8.3 MP |
| Pixel size | 2 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 11.6 ke⁻ |
| Read noise | 2.43–0.42 e⁻ |
| Peak QE | >83% |
| Cooling | None |
| Max frame rate | 47 fps (8-bit) |
| Image buffer | 512 MB |
| Back focus | 12.5 / 17.5 mm |
| Connection | USB 3.0 |
| Adapters | 1.25″ nosepiece, C, CS |
| Weight | 70 g |
| Body diameter | 37 mm |
Specifications from the manufacturer. Check with us if a figure matters for your setup.
In the box
- Camera body
- USB 3.0 cable, 2 m
- ST4 guide cable, 2 m
- 1.25″ nosepiece
- Quick start guide
