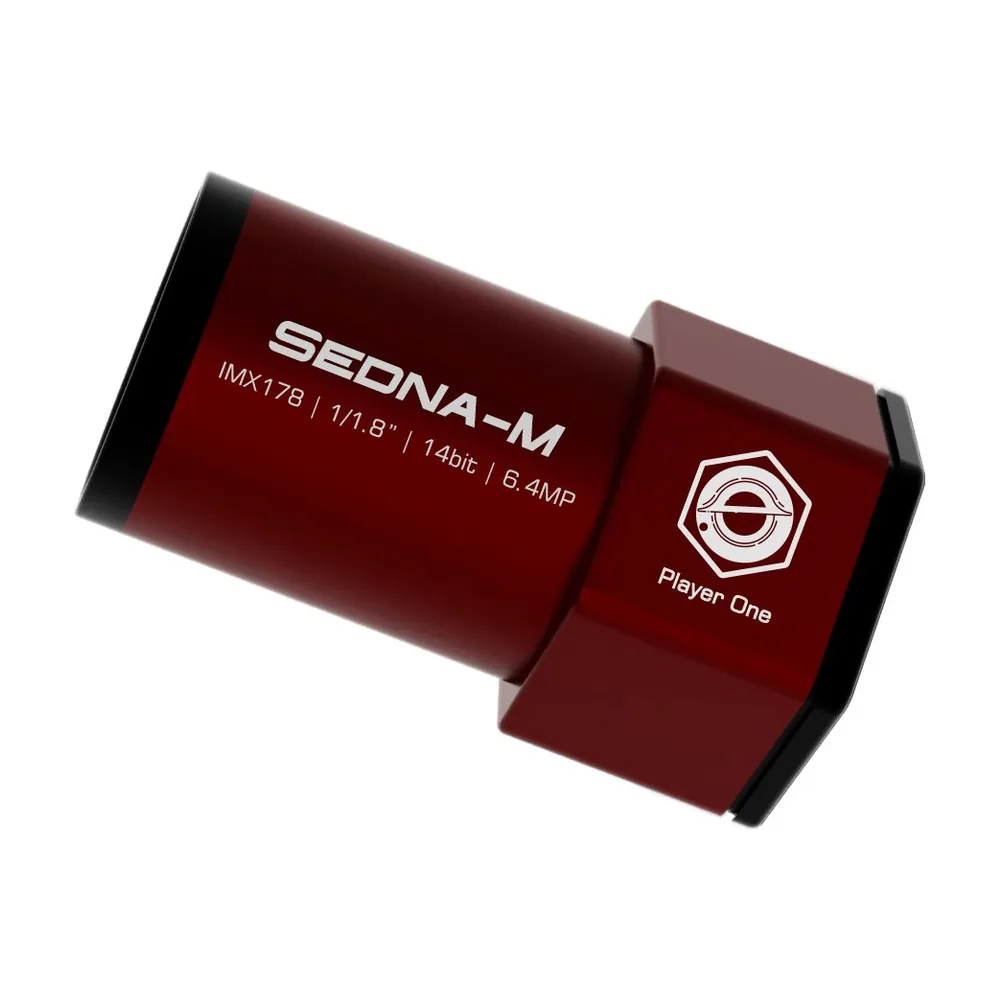

Player One Sedna-M Mono Camera
Uncooled mono camera with the Sony IMX178 1/1.8″ sensor. 6.4 MP, 2.4 µm pixels, 14-bit.
£189.00
£5 tracked UK delivery, free on orders over £250
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- £5 tracked UK delivery, free on orders over £250. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX178 sensor, other versionsSee all 5 IMX178 cameras
- Player One Neptune-C Colour CameraPlayer One · colour · uncooled
- Player One Neptune-M Mono CameraPlayer One · mono · uncooled
- ToupTek G3M178C Colour CameraToupTek · colour · uncooled
- ToupTek G3M178M Mono CameraToupTek · mono · uncooled
Overview
The Player One Sedna-M is an uncooled mono astronomy camera built around Sony’s IMX178 sensor. Its 1.25″ body slides straight into a guide scope, and it weighs 65 g.
The 2.4 µm pixels are small, so it gives fine guiding even on a short guide scope. On a 200 mm guide scope it samples at 2.5″ per pixel over about 2.1° × 1.4°. Read noise falls to 1.3 e⁻ at high gain.
It also works for imaging the Moon and planets. The 6.4 MP sensor gives 14-bit output, and the pixels are best matched at around f/12. It runs at 60 frames per second at full resolution.
The body has an M28.5 thread as well as the 1.25″ barrel, and back focus is 7.5 mm. Fit a 5–100 mm CS-mount lens and it becomes a finder or a lens-based guider.
Specifications
| Sensor | Sony IMX178, mono |
|---|---|
| Sensor format | 1/1.8″ |
| Sensor size | 7.4 × 5.0 mm |
| Diagonal | 9 mm |
| Image size | 3096 × 2078 px |
| Sensor megapixels | 6.4 MP |
| Pixel size | 2.4 µm |
| Shutter | Rolling |
| ADC | 14 bit |
| Full well | 15 ke⁻ |
| Read noise, low to high gain | 2.2–1.3 e⁻ |
| Peak QE | 80% |
| Cooling | None |
| Max frame rate | 60 fps (10-bit) |
| Back focus | 7.5 mm |
| Connection | USB 3.0 |
| Adapters | M28.5×0.6, 1.25″ |
| Weight | 65 g |
| Body diameter | 40 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 2.4 µm pixels and 7.4 × 5.0 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 2.0″ per pixel | 1.7° × 1.1° |
| 400 mm | 1.2″ per pixel | 1.1° × 43′ |
| 600 mm | 0.83″ per pixel | 42′ × 29′ |
| 1,000 mm | 0.50″ per pixel | 25′ × 17′ |
| 2,000 mm | 0.25″ per pixel | 13′ × 9′ |
Specifications from Player One. Check with us if a figure matters for your setup.
