Player One Artemis-M Pro Mono Cooled Camera
Cooled mono camera with the Sony IMX492 4/3″ sensor. 47 MP, 2.315 µm pixels, 12-bit.
£962.00
Free tracked UK delivery
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX492 sensor, other versionsSee all 2 IMX492 cameras
- ToupTek ATR294M Mono Cooled CameraToupTek · mono · cooled
Overview

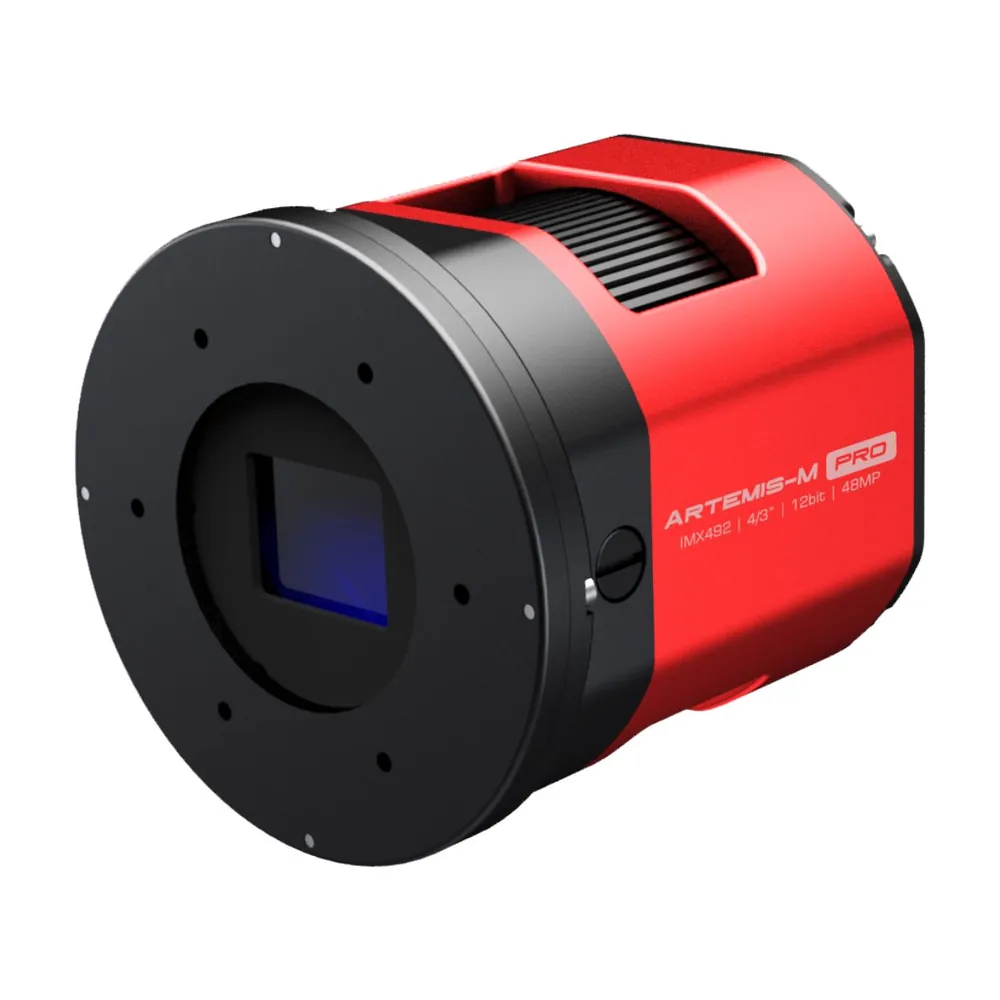

The Player One Artemis-M Pro is a cooled mono astronomy camera built around Sony’s IMX492 sensor. Its 4/3″ frame has very small 2.315 µm pixels, giving 47 megapixels.
That makes it two cameras in one. Unbinned, the small pixels suit short focal lengths: on a 400 mm refractor it samples at 1.19″ per pixel over about 2.75° × 1.86°. In 2 × 2 hardware binning it becomes an 11.7 MP camera with 4.63 µm pixels, for longer focal lengths.
Binning also raises the full well from 18,600 to 65,800 electrons and the output from 12 to 14 bits. Peak QE is about 90%.
The IMX492 shows some amp glow, more at high gain and in binned mode. Player One supplies dark frames to show it, and it calibrates out with matching darks.

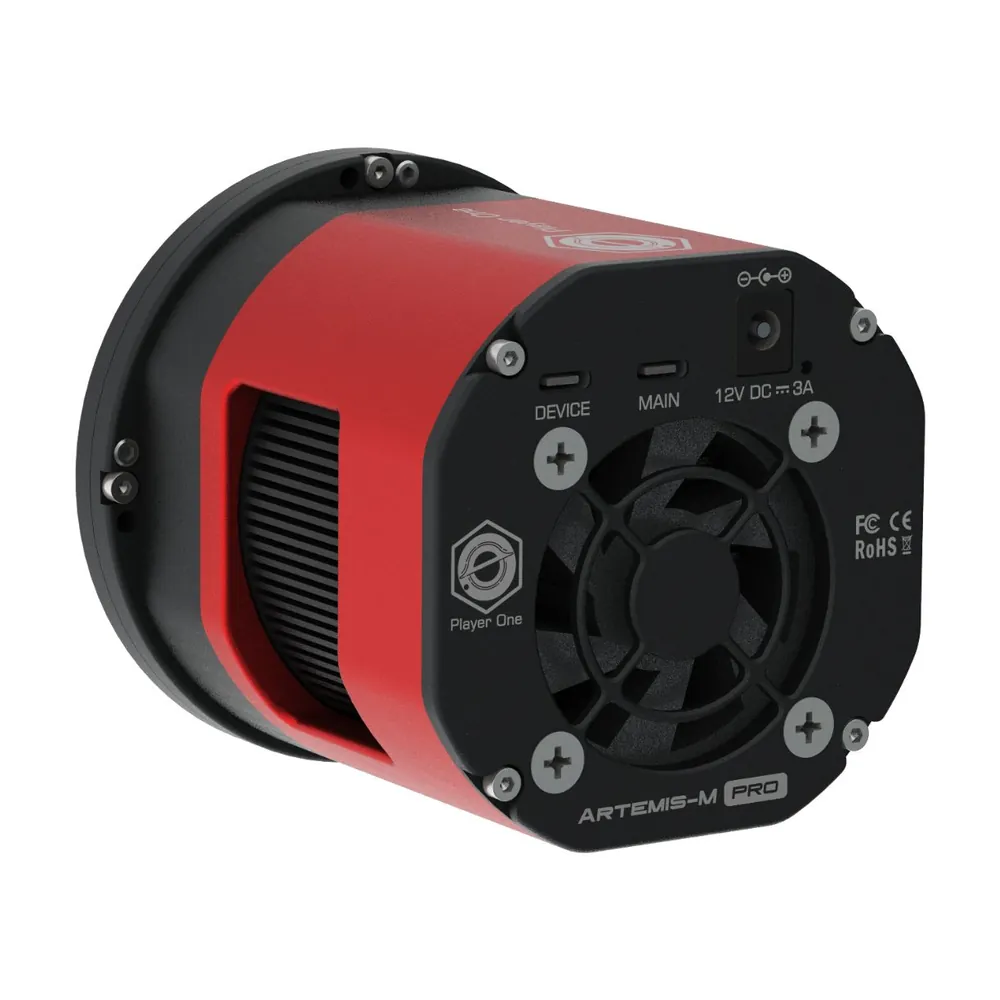

Two-stage cooling holds the sensor about 40 °C below the air temperature, and a heater keeps dew off the window. Tilt is adjusted from the back with a four-point plate. Back focus is 17.5 mm, or 12.5 mm with the plate removed, and the 512 MB buffer handles the large frames.
The camera weighs 650 g. The cooler runs from 12 V, and the power supply is not included: Player One recommends one rated at 5 A or more.
Specifications
| Sensor | Sony IMX492, mono |
|---|---|
| Sensor format | 4/3″ |
| Sensor size | 19.2 × 13.0 mm |
| Diagonal | 23.2 mm |
| Image size | 8288 × 5648 px |
| Sensor megapixels | 47 MP |
| Pixel size | 2.315 µm |
| Shutter | Rolling |
| ADC | 12 bit |
| Full well | 18.6 ke⁻ |
| Read noise, low to high gain | 7.7–1.46 e⁻ |
| Peak QE | 90% |
| Cooling | Two-stage TEC, 40 °C ± 2 °C below ambient |
| Max frame rate | 8 fps (10-bit); 33 with 2 × 2 binning |
| Image buffer | 512 MB |
| Back focus | 17.5 mm (12.5 without the tilt plate) |
| Connection | USB 3.0 (Type-C) |
| Adapters | M48×0.75, 2″, 1.25″ |
| Weight | 650 g |
| Body diameter | 90 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 2.315 µm pixels and 19.2 × 13.0 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 1.9″ per pixel | 4.4° × 3.0° |
| 400 mm | 1.2″ per pixel | 2.7° × 1.9° |
| 600 mm | 0.80″ per pixel | 1.8° × 1.2° |
| 1,000 mm | 0.48″ per pixel | 1.1° × 45′ |
| 2,000 mm | 0.24″ per pixel | 33′ × 22′ |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with metal cover
- M48 extenders, 17.5 mm and 20 mm
- M48 to M42 adapter
- T-mount and 1.25″ cover
- Air blower
- USB 3.2 cable, Type-C to Type-A, 2 m
- USB 2.0 cables, Type-C to Type-C and Type-C to Type-B, 0.5 m
- M2 hex key and M2.5 screws
- Cable tie
- Camera bag
Not included
- Power supply: 12 V, 5 A or more recommended
