Player One Apollo-M Mono Camera
Uncooled mono camera with the Sony IMX174 1/1.2″ sensor. 2.3 MP, 5.86 µm pixels, global shutter, 12-bit.
£410.00
Free tracked UK delivery
Usually in stock
- Pay by card or PayPal
- UK company in Shrewsbury
- Call 01743 224 180 or WhatsApp
- Delivery
- Free tracked UK delivery. Outside the UK, the cost is shown in your basket. Delivery
- Warranty
- 2-year manufacturer warranty, handled by us in the UK.
- Returns
- 14 days to return unused items. Returns policy
Same IMX174 sensor, other versionsSee all 2 IMX174 cameras
- Player One Apollo-C Colour CameraPlayer One · colour · uncooled
Overview

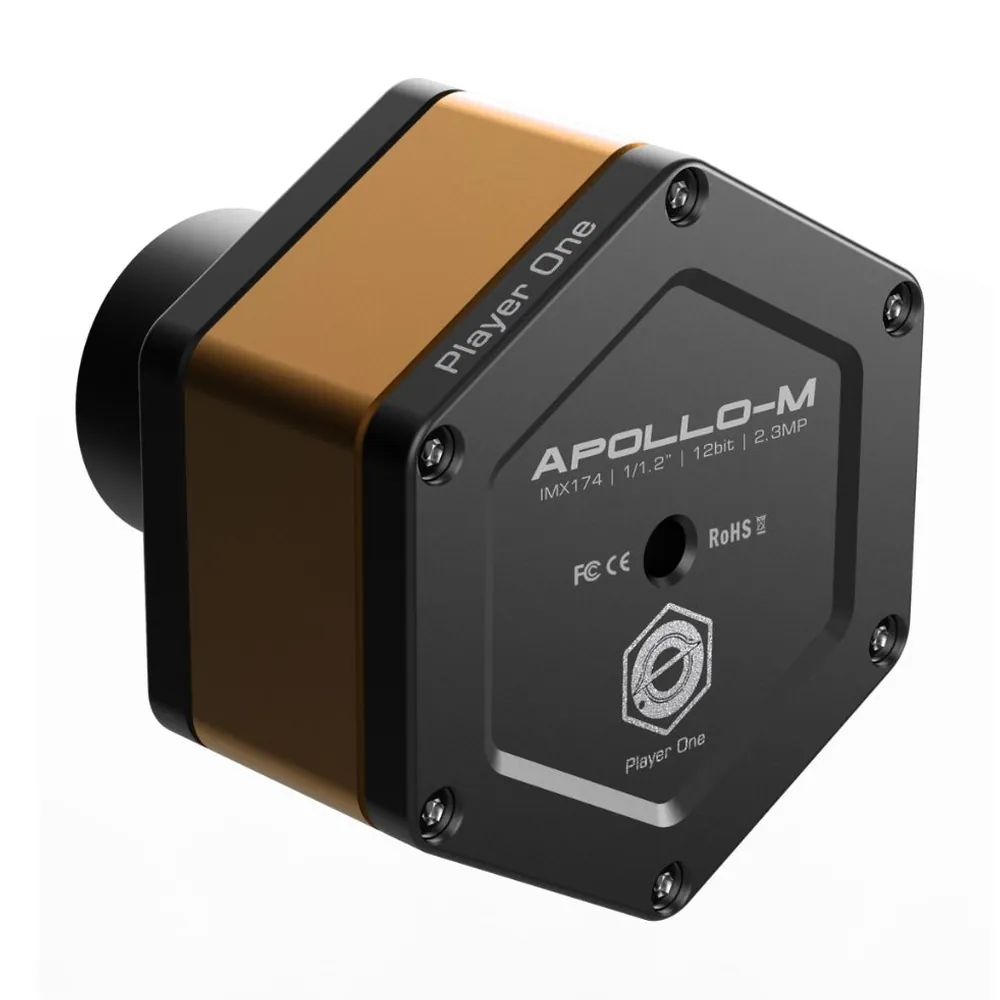

The Player One Apollo-M is an uncooled mono astronomy camera built around Sony’s IMX174 global-shutter sensor. It is made for imaging the Sun, especially in hydrogen-alpha, and it suits the Moon too.
A global shutter reads the whole frame at once, so seeing ripples don’t distort the image. The camera runs at 164 frames per second at full resolution, which helps freeze the seeing.
The 1/1.2″ sensor measures 11.3 × 7.1 mm. The whole solar disc fits on the short side at focal lengths up to about 750 mm. The 5.86 µm pixels suit long focal lengths and slow solar telescopes.
The sensor tilt plate helps remove Newton’s rings. A 256 MB buffer stops dropped frames on a slower laptop or USB 2.0 port.
The body has a passive heatsink. Our Player One Active Cooling System fits if you want it cooler on long sessions.
Only use the camera on the Sun with a proper solar filter, Herschel wedge or solar telescope.
Specifications
| Sensor | Sony IMX174, mono |
|---|---|
| Sensor format | 1/1.2″ |
| Sensor size | 11.3 × 7.1 mm |
| Diagonal | 13.3 mm |
| Image size | 1936 × 1216 px |
| Sensor megapixels | 2.3 MP |
| Pixel size | 5.86 µm |
| Shutter | Global |
| ADC | 12 bit |
| Full well | 24.8 ke⁻ |
| Read noise, low to high gain | 6.3–3.5 e⁻ |
| Peak QE | 77% |
| Cooling | None: passive heatsink (optional active cooling kit) |
| Max frame rate | 164 fps (10-bit) |
| Image buffer | 256 MB |
| Back focus | 12.5 mm |
| Connection | USB 3.0 |
| Adapters | M42×0.75, 1.25″ |
| Weight | 160 g |
| Body diameter | 66 mm |
Image scale and field of view
What this camera covers at common telescope focal lengths, from its 5.86 µm pixels and 11.3 × 7.1 mm sensor. How to read these figures
| Focal length | Image scale | Field of view |
|---|---|---|
| 250 mm | 4.8″ per pixel | 2.6° × 1.6° |
| 400 mm | 3.0″ per pixel | 1.6° × 1.0° |
| 600 mm | 2.0″ per pixel | 1.1° × 41′ |
| 1,000 mm | 1.2″ per pixel | 39′ × 24′ |
| 2,000 mm | 0.60″ per pixel | 19′ × 12′ |
Specifications from Player One. Check with us if a figure matters for your setup.
In the box
- Camera with 1.25″ T-mount
- USB 3.0 cable
- ST4 guide cable
- 1.25″ dust cover
- Air blower
- M2 hex key
